IPS linear actuators offer horizontal and vertical motion with travel up to 500 feet at speeds of up to 600 inches per second and can accurately handle loads of up to 10,000 lbs.
Profile Rail Guided Actuators | Round Rail Guided Actuators | Unguided Actuators | Screw Driven Actuators | Gearboxes | T-Slot Sensor Kits
Belt Driven Actuators
Features:
Single axis belt driven actuators with user defined strokes and mounting flexibility in any orientation. Extruded aluminum actuator body with T-slots for ease of mounting. Easy to adjust belt tensioner with one piece machined and stress proof shafted pulley (zero backlash belt to pulley design). Corrosion resistant components with washdown duty or water- resistant options upon request.
Notes:
Each belt driven actuator can be supplied with the following items upon request: t-slot sensors, gearboxes, or motor mounting adaptors. Cable track is also available upon request.
For travel requirements over standard values or if you need a dual, multi-axis or custom solution, please reach out to one of our design experts.
Profile Rail Guided
Single Carriage

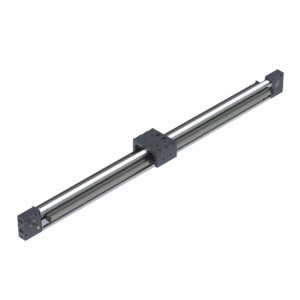

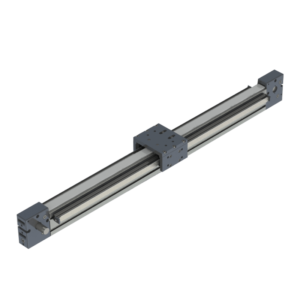

iSA-R5D Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 25[25] | Horizontal [Vertical] – mm/sec: 5000[5000] | 495 in-lbs[56 N-m] |

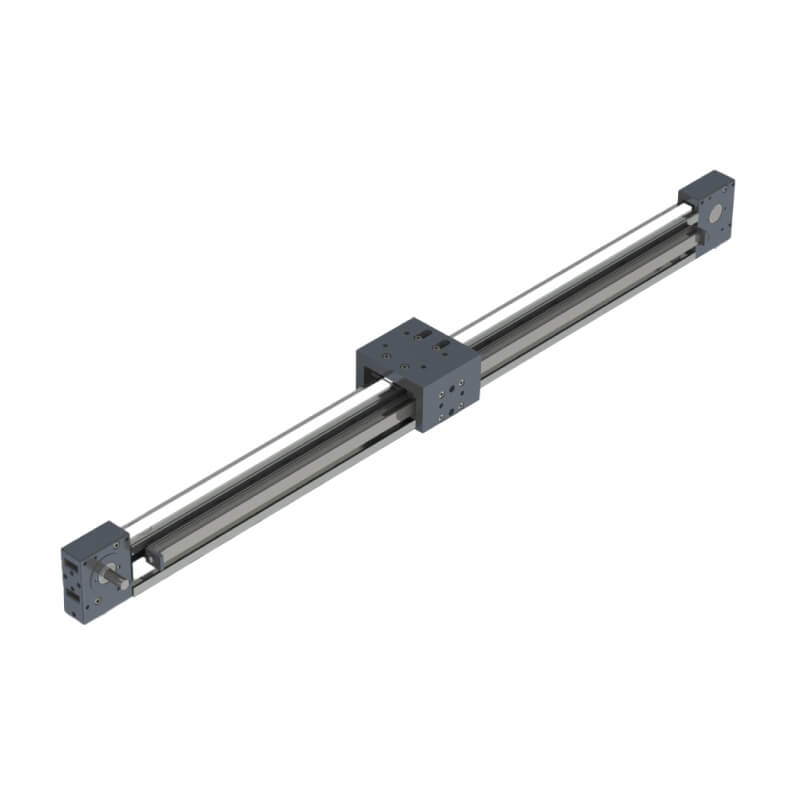

iSA-R15 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 20[10] | Horizontal [Vertical] – mm/sec: 5000[5000] | 212 in-lbs[24 N-m] |

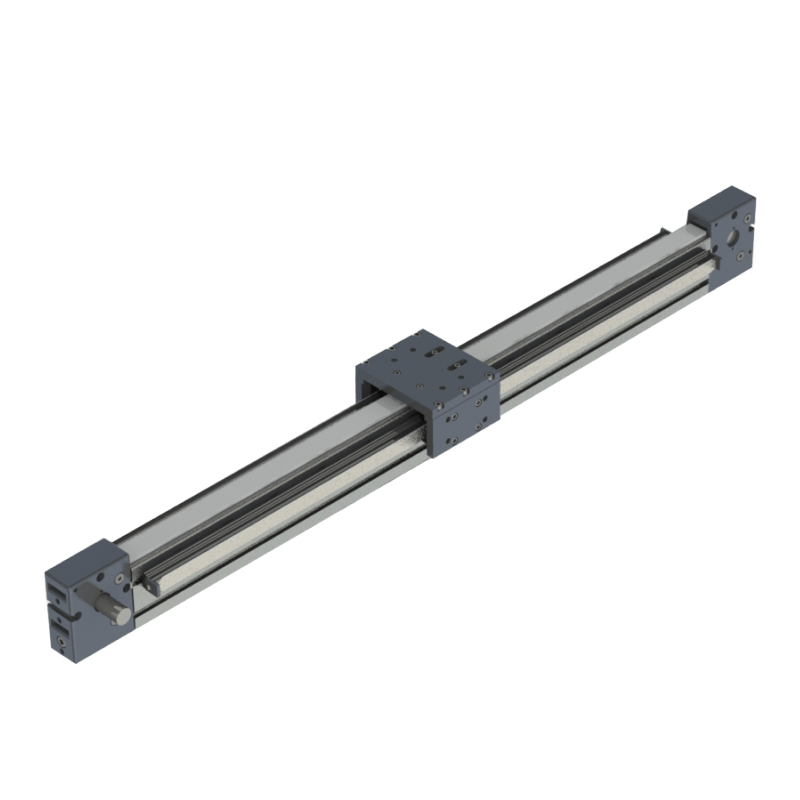

iSA-R6D Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 25[25] | Horizontal [Vertical] – mm/sec: 5000[5000] | 495 in-lbs[56 N-m] |

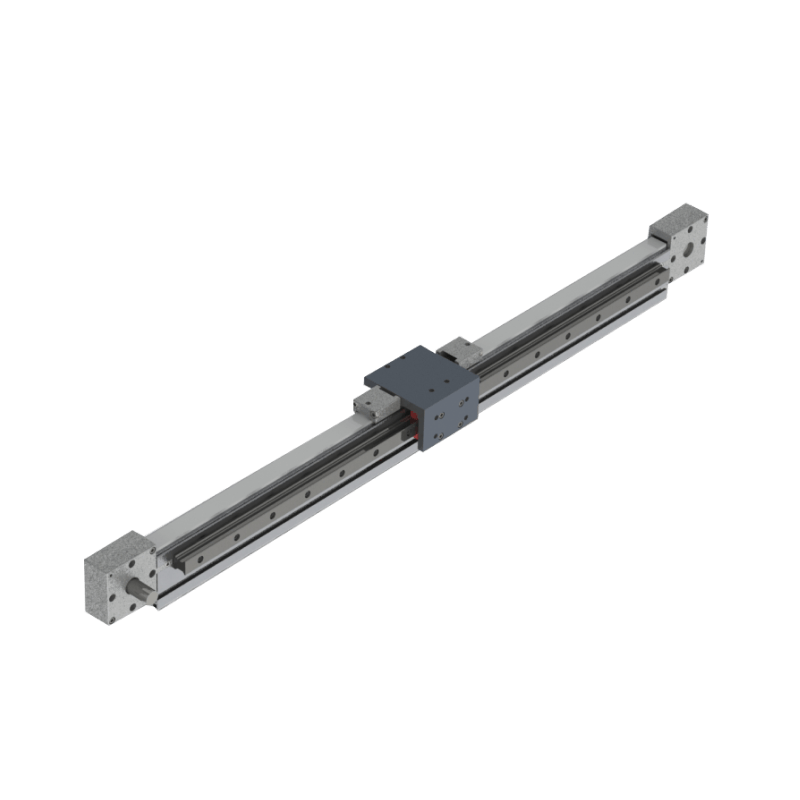

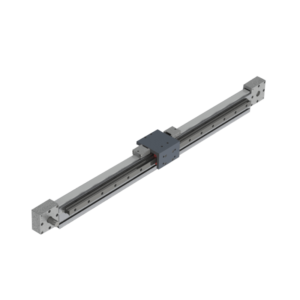

iSA-R6S Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[50] | Horizontal [Vertical] – mm/sec: 5000[5000] | 354 in-lbs[40 N-m] |

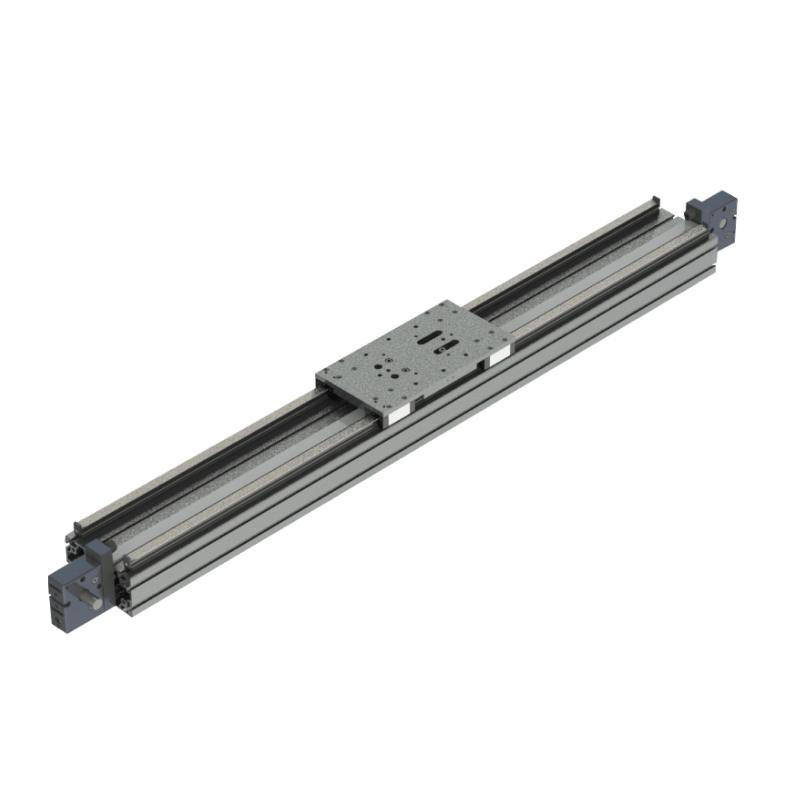

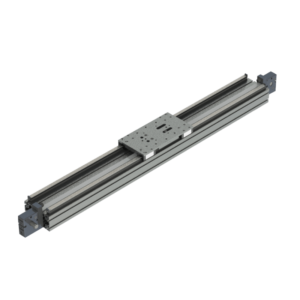

iSA-R2D Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 1000[500] | Horizontal [Vertical] – mm/sec: 10160[5080] | 4400in-lbs[497 N-m] |

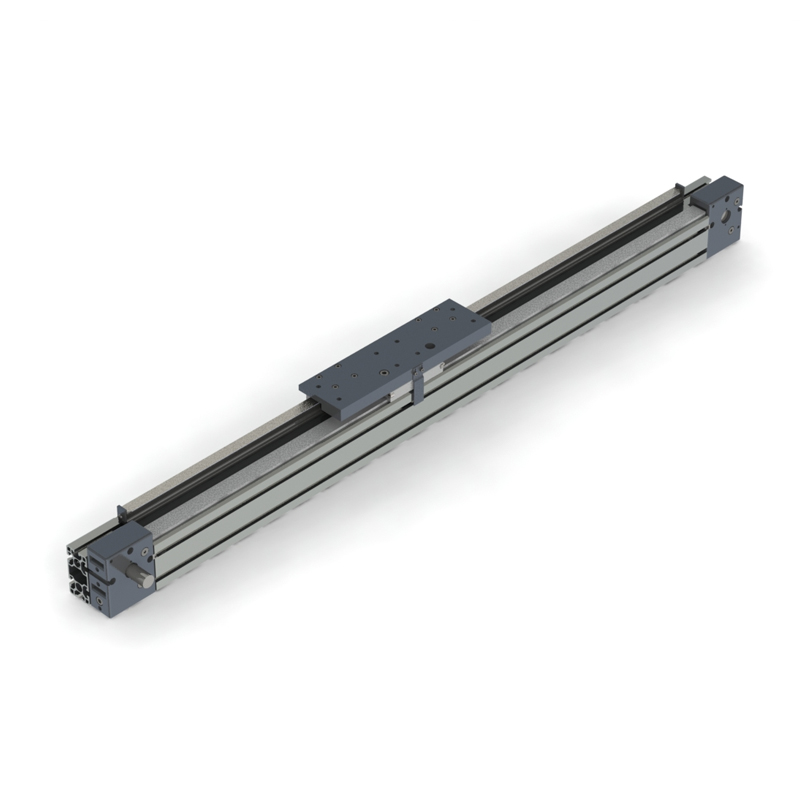

iSA-R20 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 500[500] | Horizontal [Vertical] – mm/sec: 5000[5000] | 2200in-lbs[448 N-m] |
- Light Duty
-

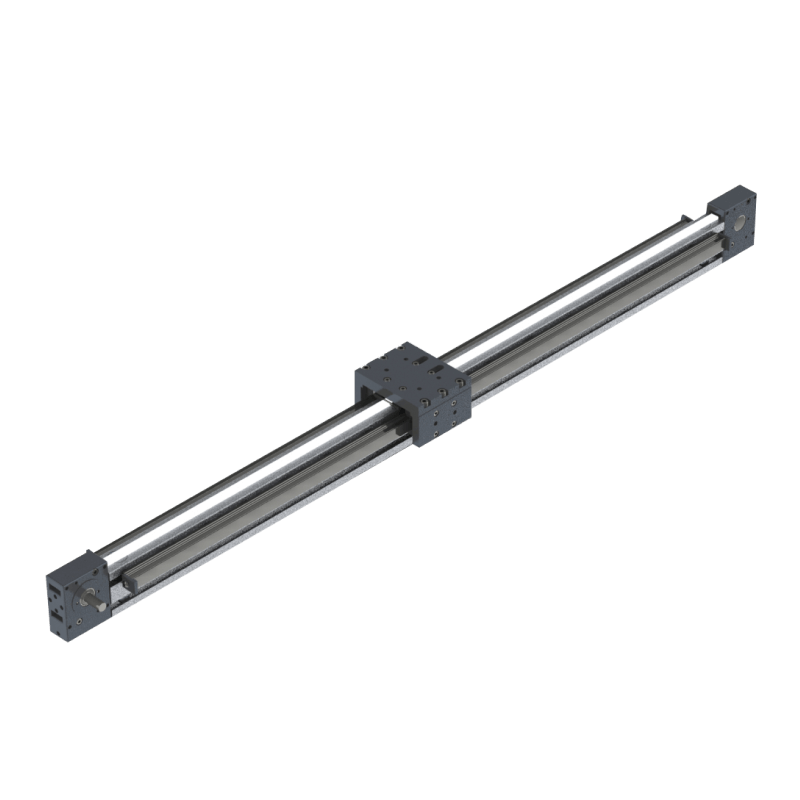

iSA-R5D Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 25[25] Horizontal [Vertical] – mm/sec: 5000[5000] 495 in-lbs[56 N-m] iSA-R15 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 20[10] Horizontal [Vertical] – mm/sec: 5000[5000] 212 in-lbs[24 N-m] - Standard Duty
-
iSA-R6D Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 25[25] Horizontal [Vertical] – mm/sec: 5000[5000] 495 in-lbs[56 N-m] iSA-R6S Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[50] Horizontal [Vertical] – mm/sec: 5000[5000] 354 in-lbs[40 N-m] - Heavy Duty
-
iSA-R2D Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 1000[500] Horizontal [Vertical] – mm/sec: 10160[5080] 4400in-lbs[497 N-m] iSA-R20 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 500[500] Horizontal [Vertical] – mm/sec: 5000[5000] 2200in-lbs[448 N-m]
Dual Carriage

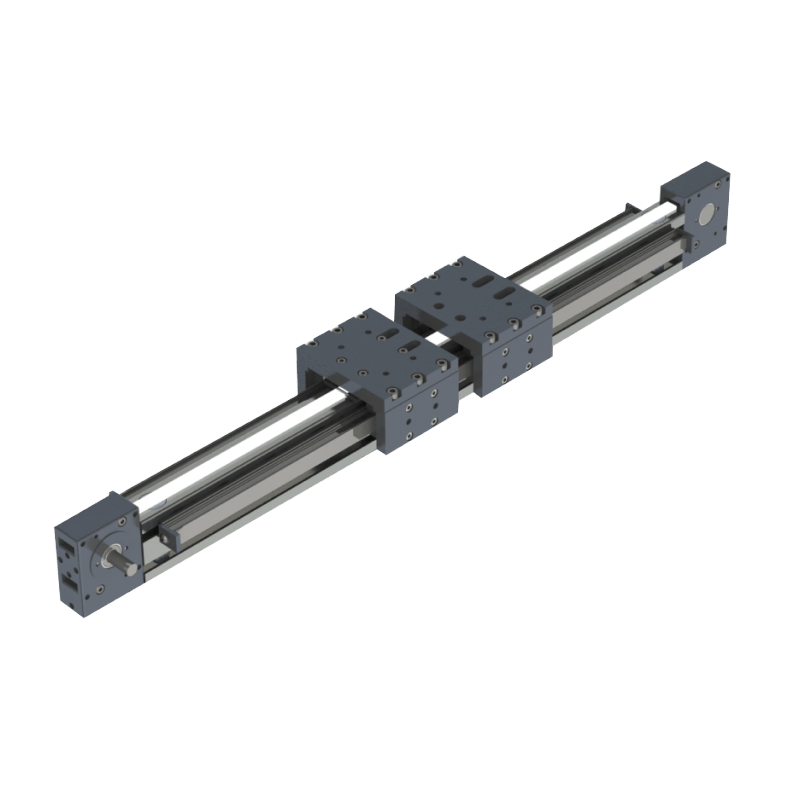

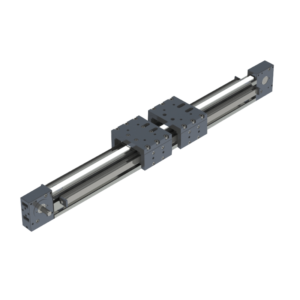

iDC-R5D Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[50] | Horizontal [Vertical] – mm/sec: 5000[5000] | 2200 in-lbs[248 N-m] |

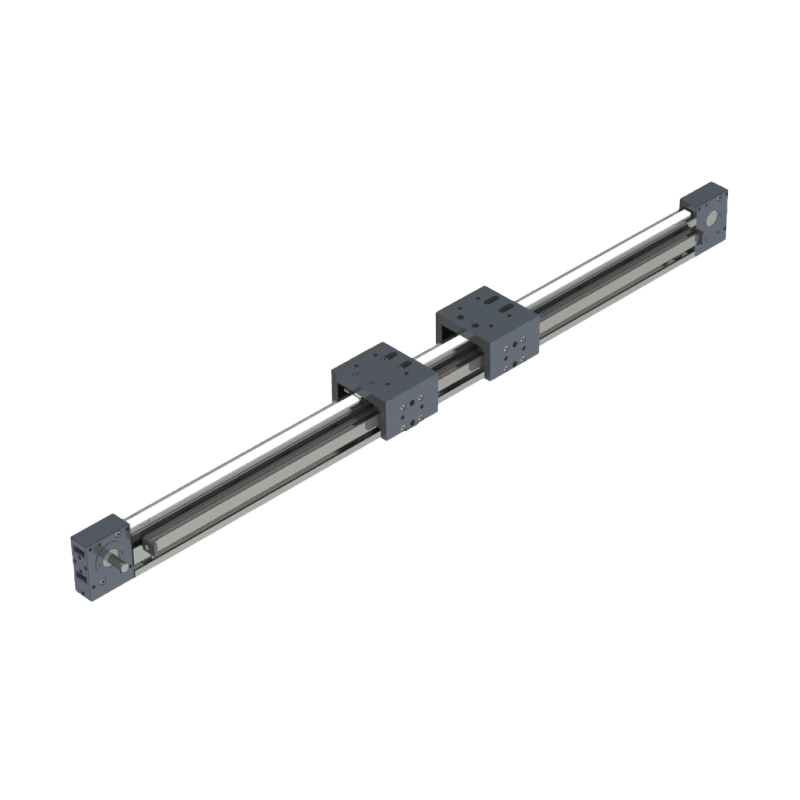

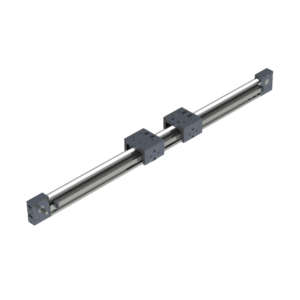

iDC-R15 Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 20[10] | Horizontal [Vertical] – mm/sec: 5000[5000] | 310 in-lbs[35 N-m] |

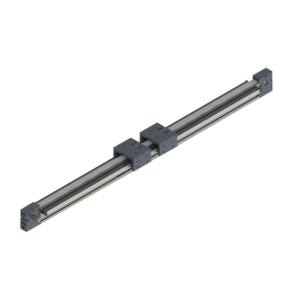

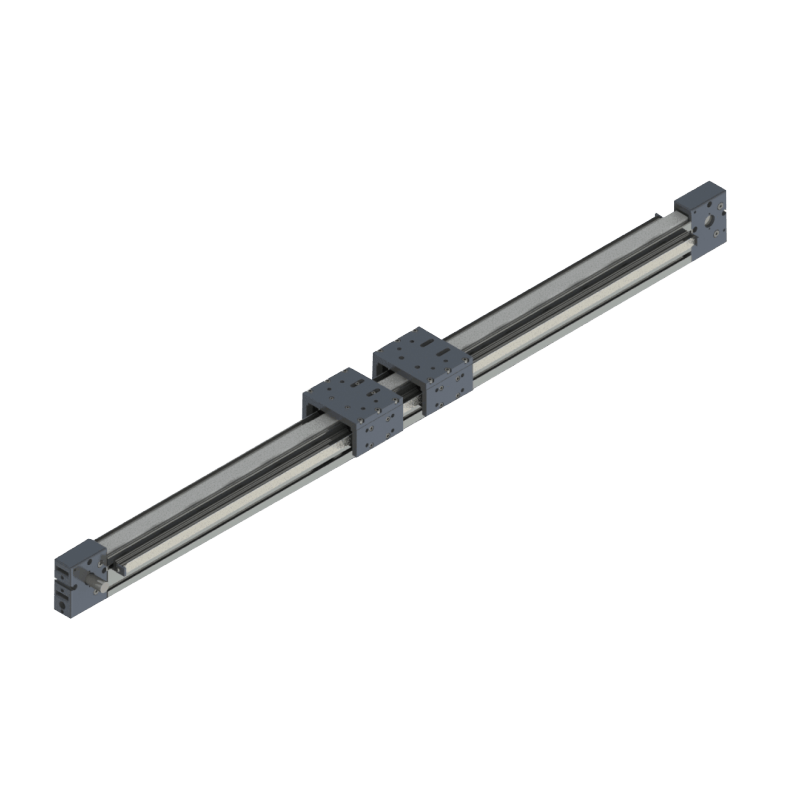

iDC-R6D Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 100[100] | Horizontal [Vertical] – mm/sec: 5000[5000] | 2200 in-lbs[248 N-m] |

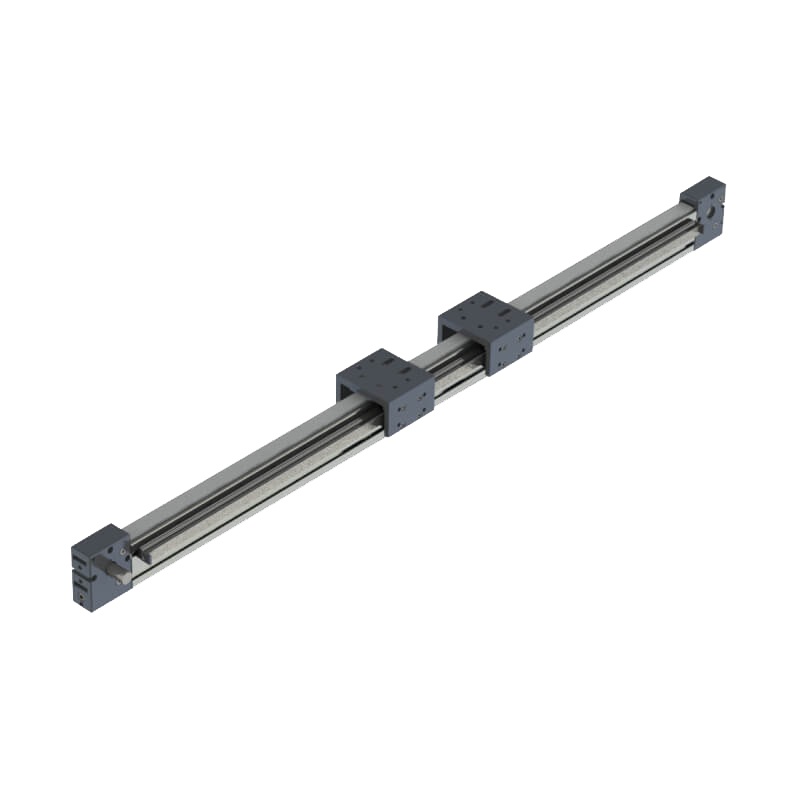

iDC-R6S Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[25] | Horizontal [Vertical] – mm/sec: 16230[3115] | 25 in-lbs[2.8 N-m] |

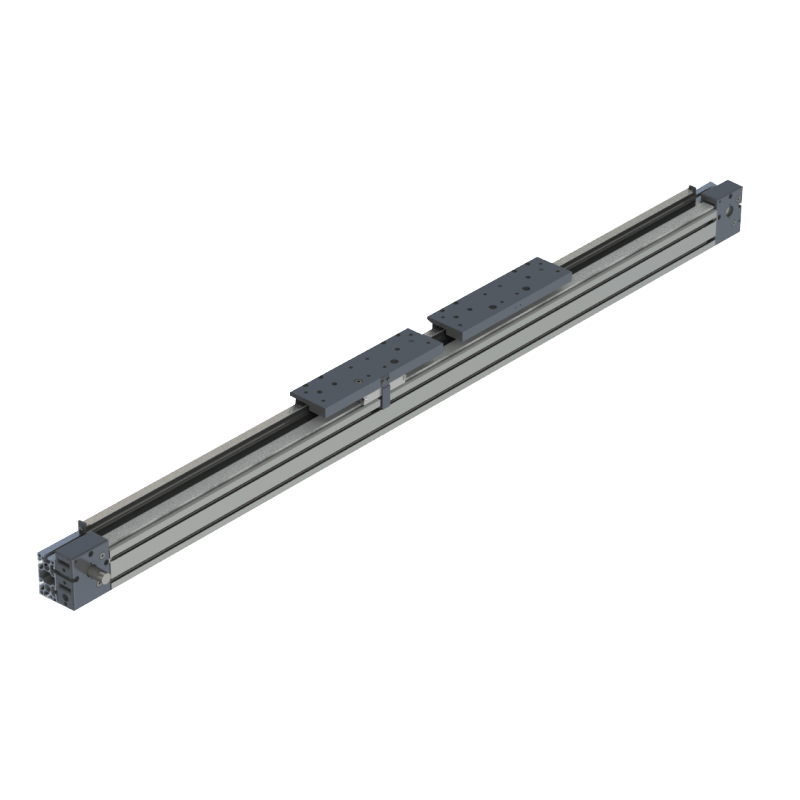

iDC-R20 Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 1000[300] | Horizontal [Vertical] – mm/sec: 5000[5000] | 2200in-lbs[248 N-m] |
- Light Duty
-
iDC-R5D Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[50] Horizontal [Vertical] – mm/sec: 5000[5000] 2200 in-lbs[248 N-m] iDC-R15 Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 20[10] Horizontal [Vertical] – mm/sec: 5000[5000] 310 in-lbs[35 N-m] - Standard Duty
-
iDC-R6D Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 100[100] Horizontal [Vertical] – mm/sec: 5000[5000] 2200 in-lbs[248 N-m] iDC-R6S Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[25] Horizontal [Vertical] – mm/sec: 16230[3115] 25 in-lbs[2.8 N-m] - Heavy Duty
-
iDC-R20 Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 1000[300] Horizontal [Vertical] – mm/sec: 5000[5000] 2200in-lbs[248 N-m]
Round Rail Guided
Single Carriage

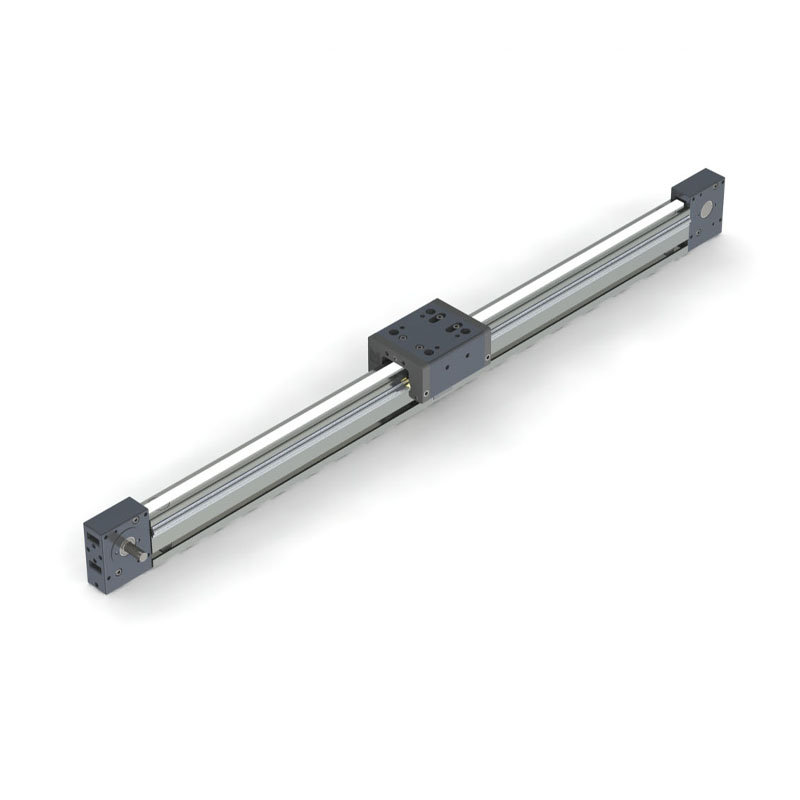

iSA-628 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 20[10] | Horizontal [Vertical] – mm/sec: 6230[3115] | 53 in-lbs[6 N-m] |

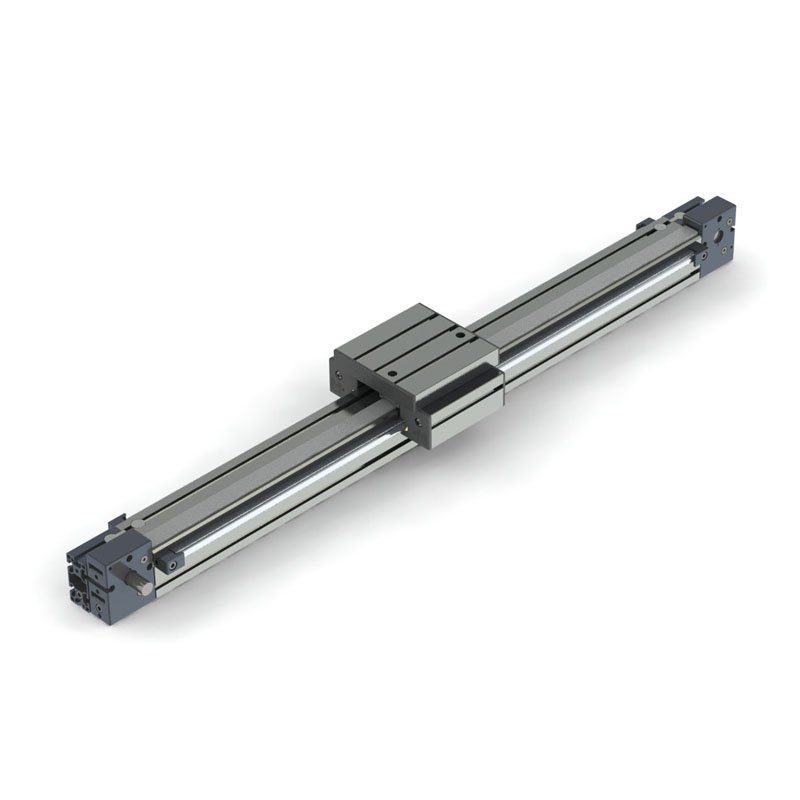

iSA-14S Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 200[100] | Horizontal [Vertical] – mm/sec: 10160[5080] | 567 in-lbs[64 N-m] |

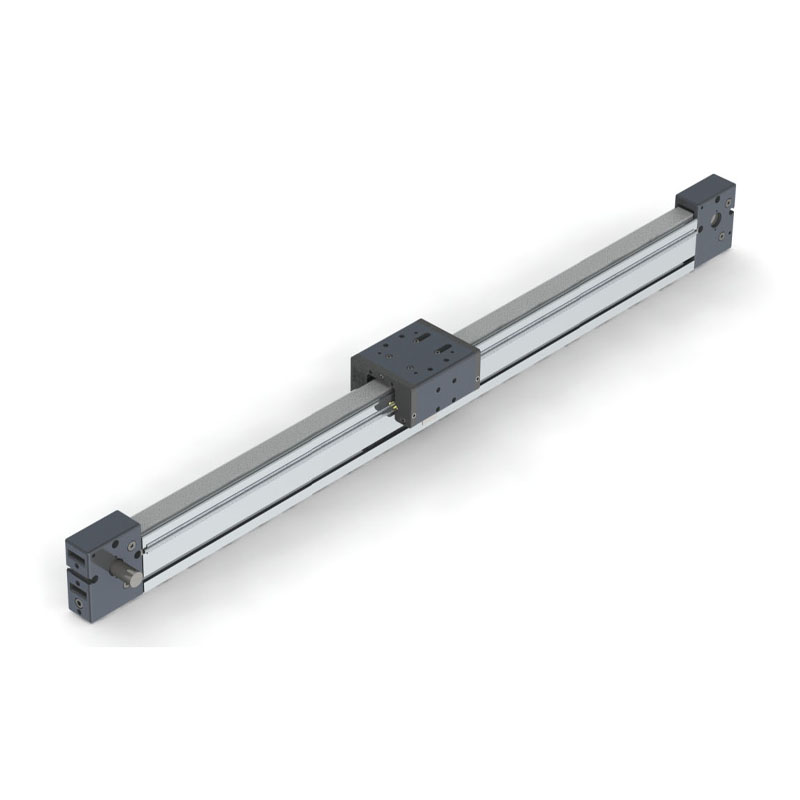

iSA-M6S Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[25] | Horizontal [Vertical] – mm/sec: 6230[3115] | 71 in-lbs[8 N-m] |

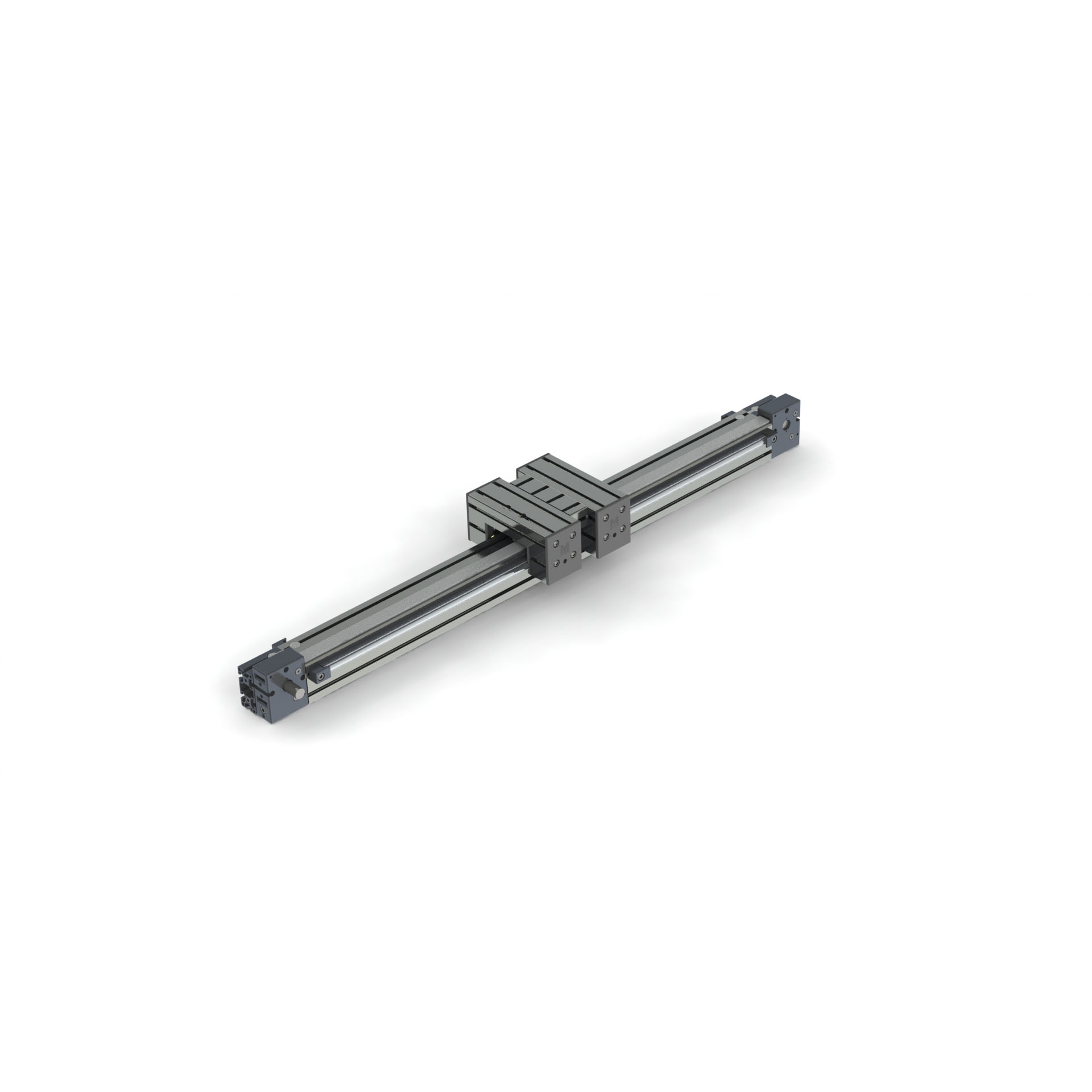

iSA-14H Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 400[300] | Horizontal [Vertical] – mm/sec: 10160[5080] | 1132in-lbs[128 N-m] |
- Light Duty
-
iSA-628 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 20[10] Horizontal [Vertical] – mm/sec: 6230[3115] 53 in-lbs[6 N-m] - Standard Duty
-
iSA-14S Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 200[100] Horizontal [Vertical] – mm/sec: 10160[5080] 567 in-lbs[64 N-m] iSA-M6S Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[25] Horizontal [Vertical] – mm/sec: 6230[3115] 71 in-lbs[8 N-m] - Heavy Duty
-
iSA-14H Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 400[300] Horizontal [Vertical] – mm/sec: 10160[5080] 1132in-lbs[128 N-m]
Dual Carriage
iDC-628 Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 20[10] | Horizontal [Vertical] – mm/sec: 6230[3115] | 25 in-lbs[2.8 N-m] |

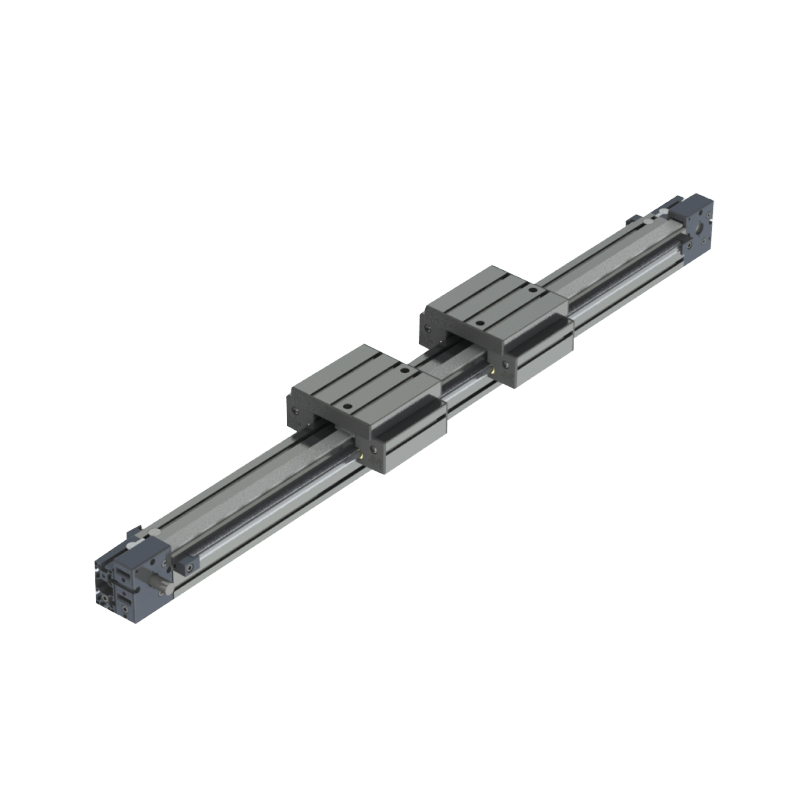

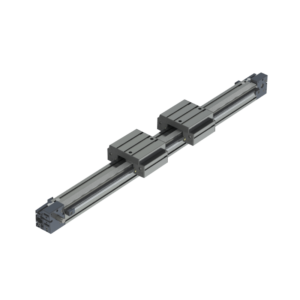

iDC-14S Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 200[100] | Horizontal [Vertical] – mm/sec: 10160[5080] | 1600 in-lbs[180 N-m] |

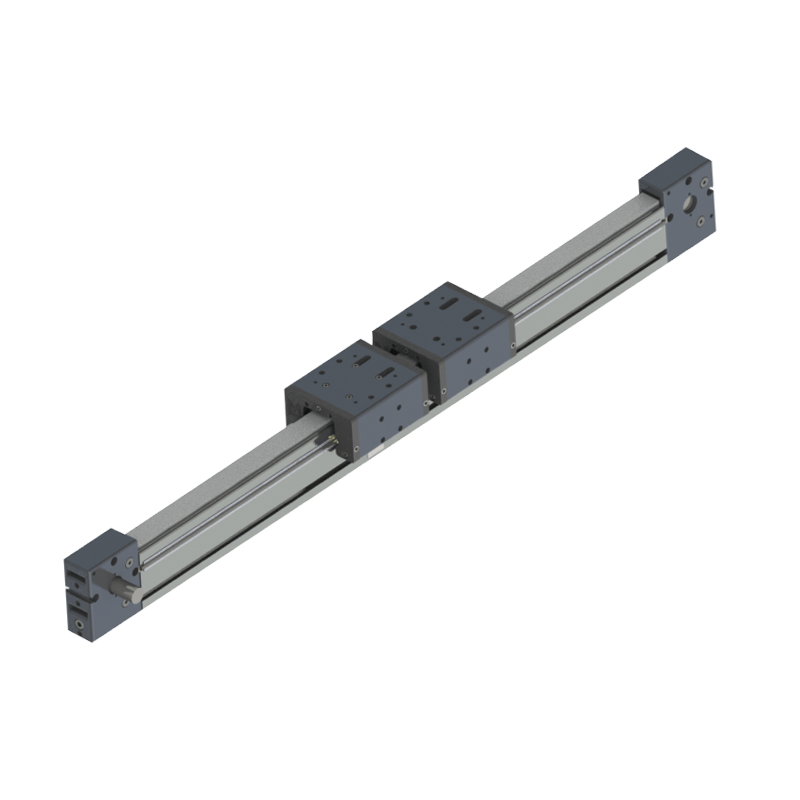

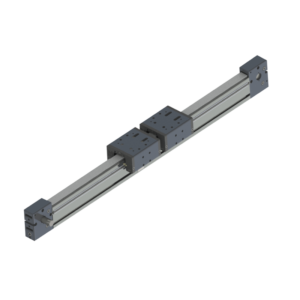

iDC-M6S Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[25] | Horizontal [Vertical] – mm/sec: 6230[3115] | 25 in-lbs[2.8 N-m] |

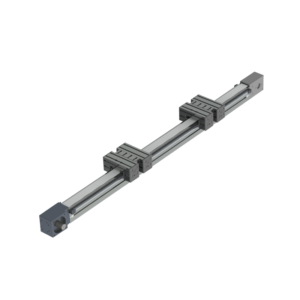

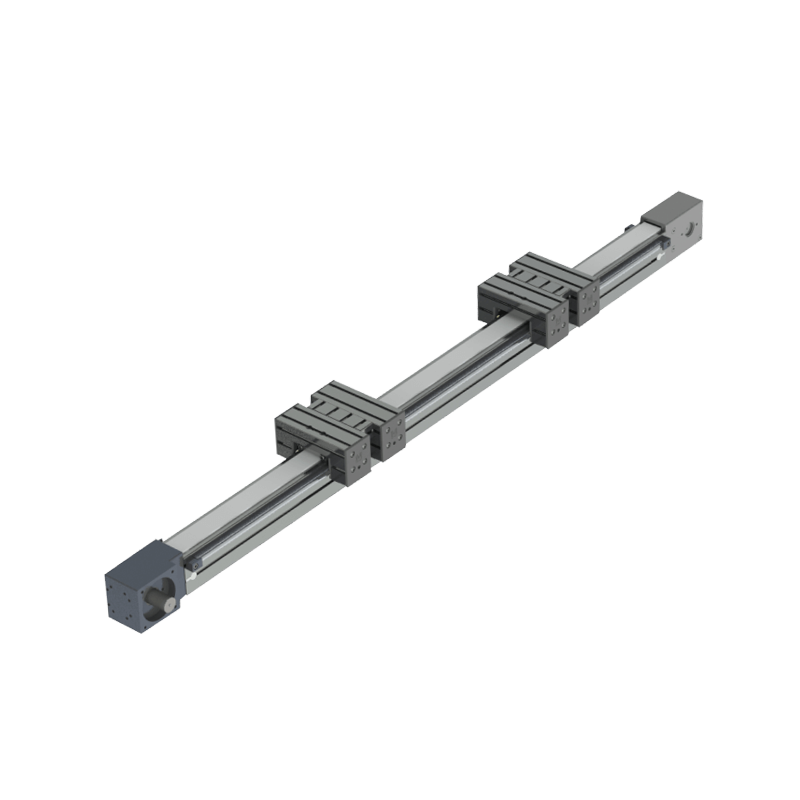

iDC-14H Dual Carriage Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 400[300] | Horizontal [Vertical] – mm/sec: 10160[5080] | 3200in-lbs[361 N-m] |
- Light Duty
-
iDC-628 Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 20[10] Horizontal [Vertical] – mm/sec: 6230[3115] 25 in-lbs[2.8 N-m] - Standard Duty
-
iDC-14S Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 200[100] Horizontal [Vertical] – mm/sec: 10160[5080] 1600 in-lbs[180 N-m] iDC-M6S Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[25] Horizontal [Vertical] – mm/sec: 6230[3115] 25 in-lbs[2.8 N-m] - Heavy Duty
-
iDC-14H Dual Carriage Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 400[300] Horizontal [Vertical] – mm/sec: 10160[5080] 3200in-lbs[361 N-m]
Unguided
Single Carriage

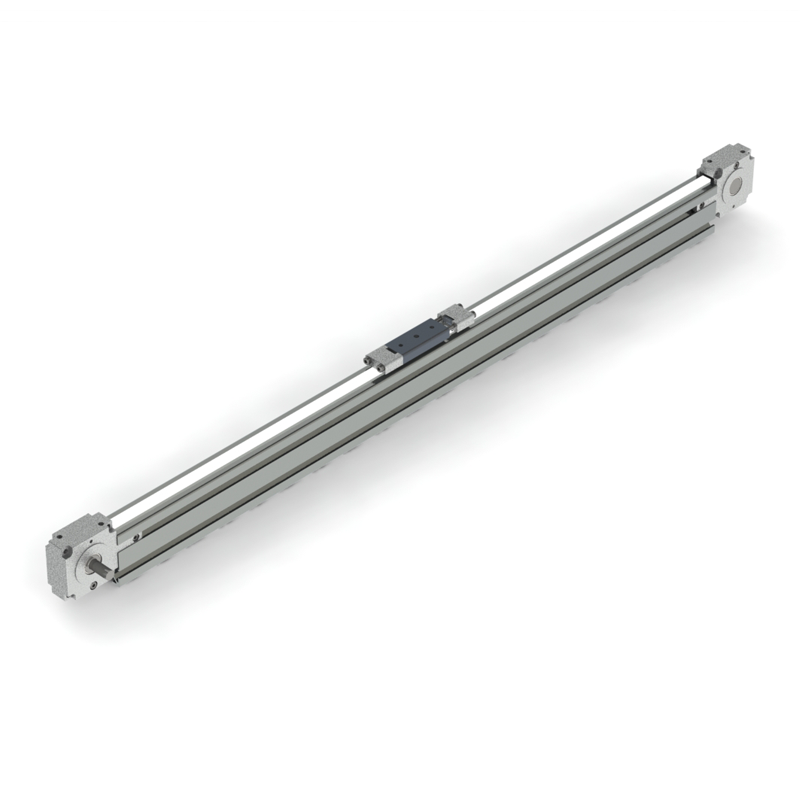

iSA-SB1 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 100[50] | Horizontal [Vertical] – mm/sec: 5050[2525] | NA in-lbs |

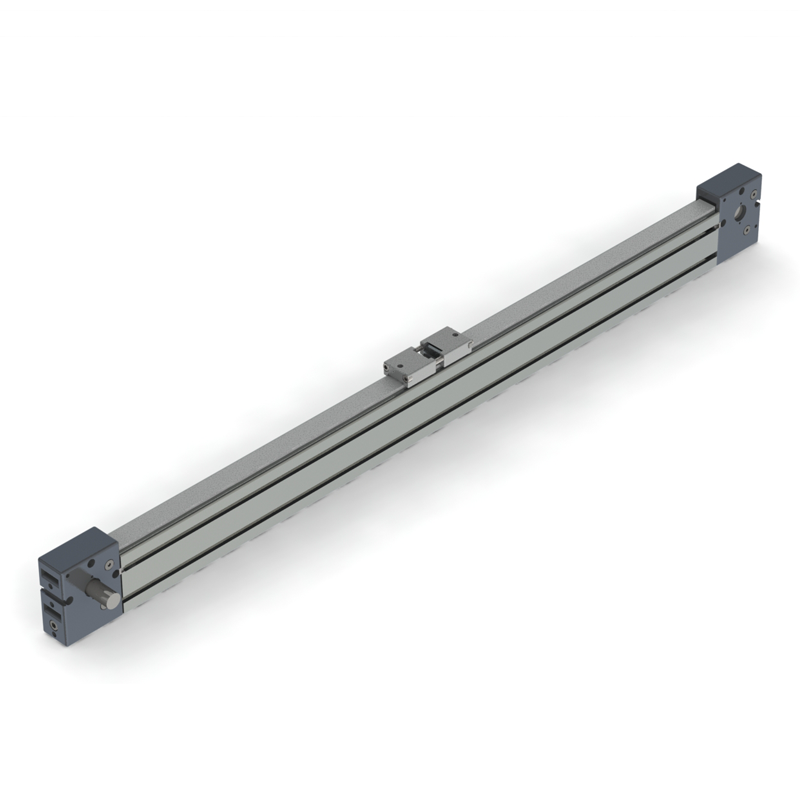

iSA-SB2 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 500[250] | Horizontal [Vertical] – mm/sec: 10160[5080] | NA in-lbs |

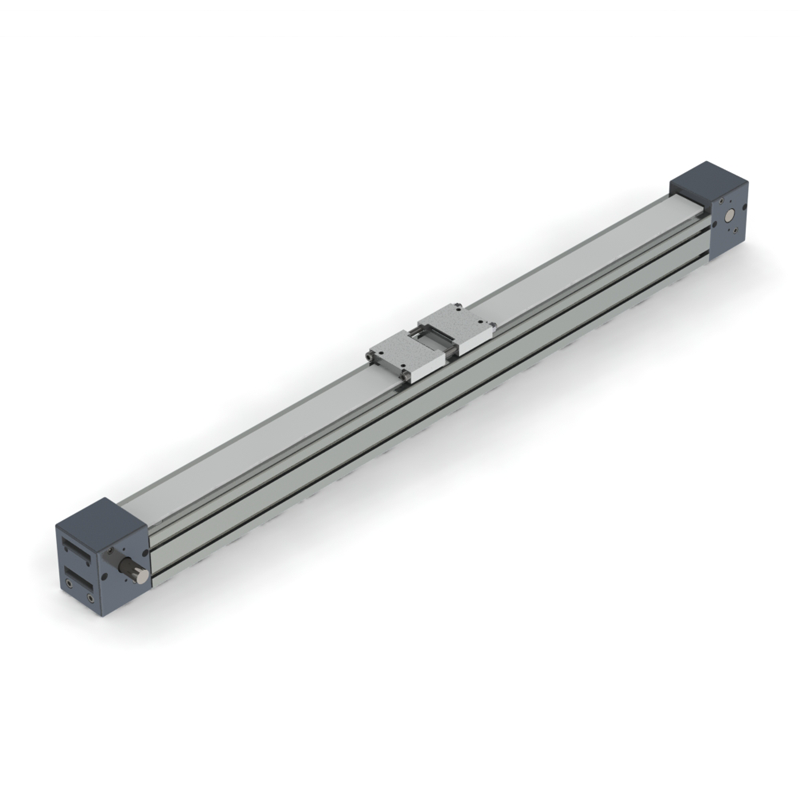

iSA-SB5 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 1000[500] | Horizontal [Vertical] – mm/sec: 10160[5080] | NA in-lbs |

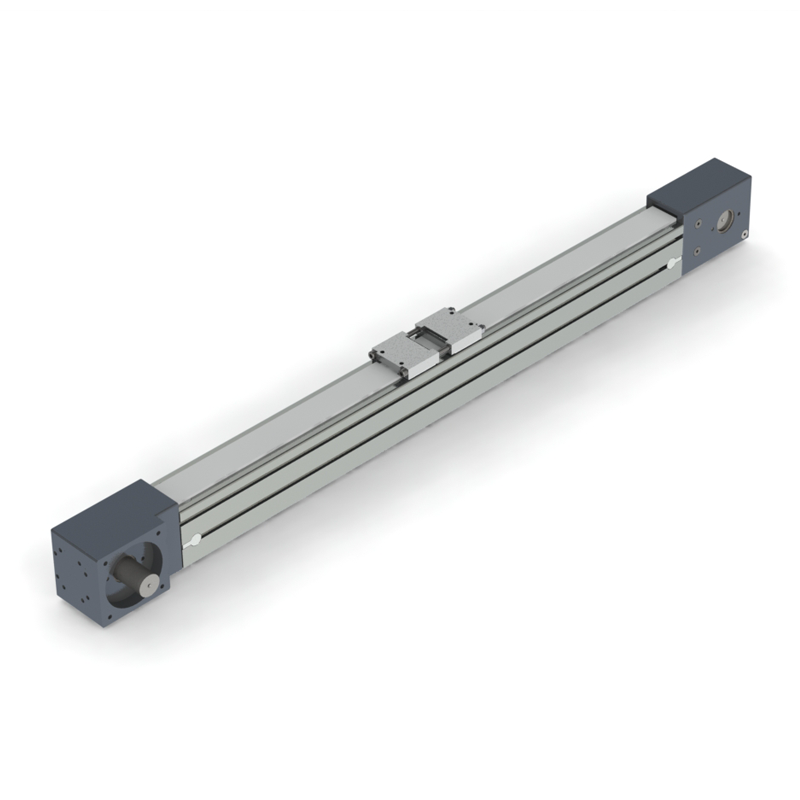

iSA-SBH Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 2500[1250] | Horizontal [Vertical] – mm/sec: 15240[7620] | NA in-lbs |

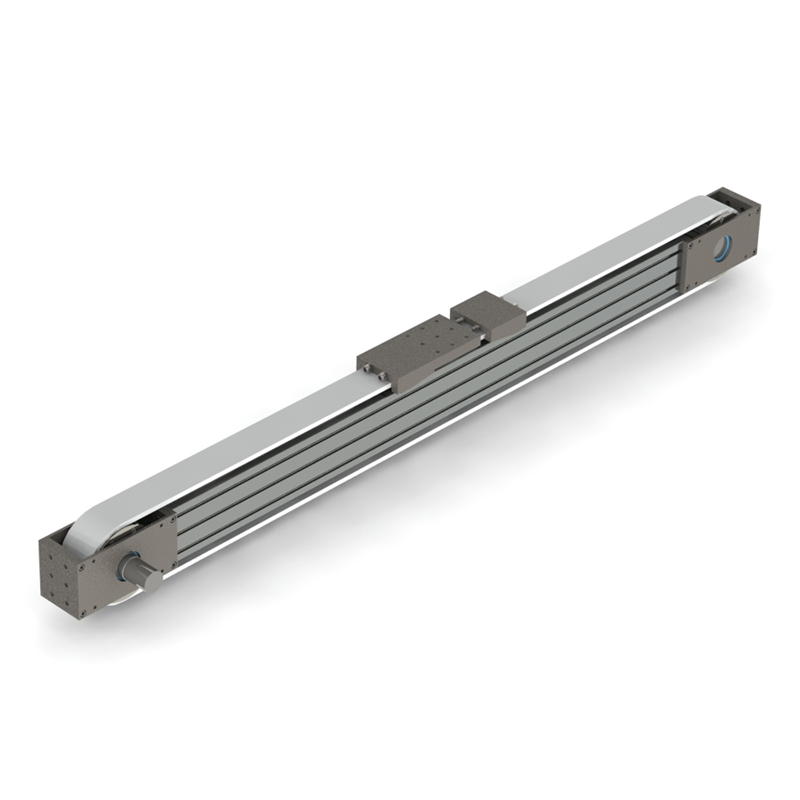

iSA-SB7 Belt Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 6000[3000] | Horizontal [Vertical] – mm/sec: 15240[7620] | NA in-lbs |
- Light Duty
-
iSA-SB1 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 100[50] Horizontal [Vertical] – mm/sec: 5050[2525] NA in-lbs iSA-SB2 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 500[250] Horizontal [Vertical] – mm/sec: 10160[5080] NA in-lbs - Standard Duty
-
iSA-SB5 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 1000[500] Horizontal [Vertical] – mm/sec: 10160[5080] NA in-lbs iSA-SBH Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 2500[1250] Horizontal [Vertical] – mm/sec: 15240[7620] NA in-lbs - Heavy Duty
-
iSA-SB7 Belt Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 6000[3000] Horizontal [Vertical] – mm/sec: 15240[7620] NA in-lbs
Screw Driven Actuators
Features:
C7 Class rolled ball screw actuator with user defined strokes and mounting flexibility in any orientation. Multiple leads available. Extruded aluminum actuator body with T-slots for ease of mounting. Precision Ground Screw available upon request. Wrap around input system available upon request. Bellows protection available.
Notes:
Each Actuator can be supplied with the following items upon request, t-slot sensors, gearboxes, or motor mounting adaptors.
For travel requirements over standard values or if you need a dual, multi-axis or custom solution, please reach out to one of our design experts.

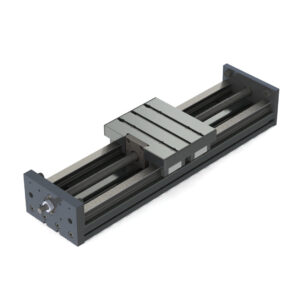

iSA-DRT Screw Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 250[250] | Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20] | 2124 in-lbs[240 N-m] |

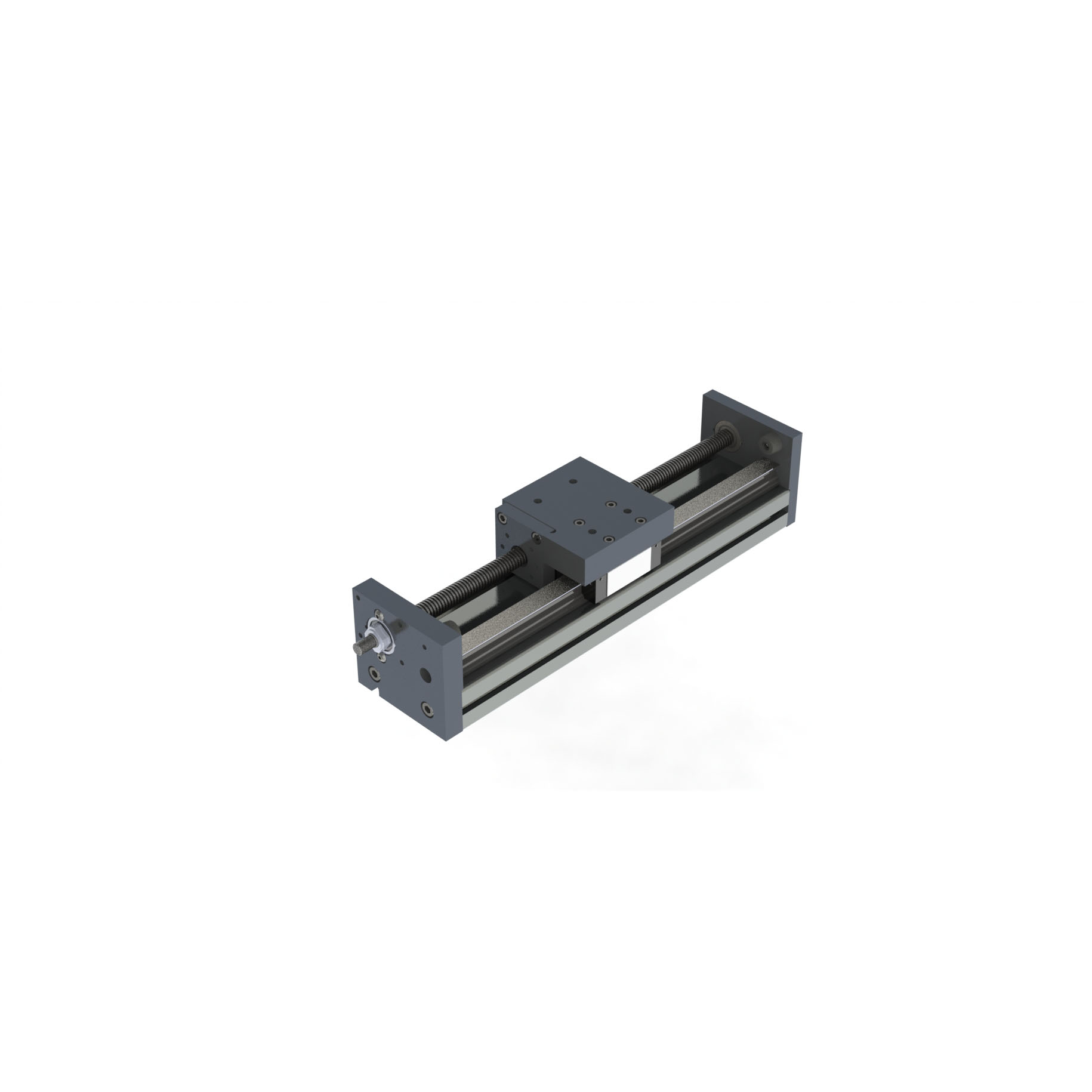

iSA-SRT Screw Driven Actuator
| Orientation | Max Load | Max Speed | Moment Load |
|---|---|---|---|
| Horizontal, Vertical | Horizontal [Vertical] – lbs.: 50[50] | Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20] | 300 in-lbs[34 N-m] |
- iSA-DRT
-
iSA-DRT Screw Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 250[250] Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20] 2124 in-lbs[240 N-m] - iSA-SRT
-
iSA-SRT Screw Driven Actuator
Orientation Max Load Max Speed Moment Load Horizontal, Vertical Horizontal [Vertical] – lbs.: 50[50] Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20] 300 in-lbs[34 N-m]
Gearboxes

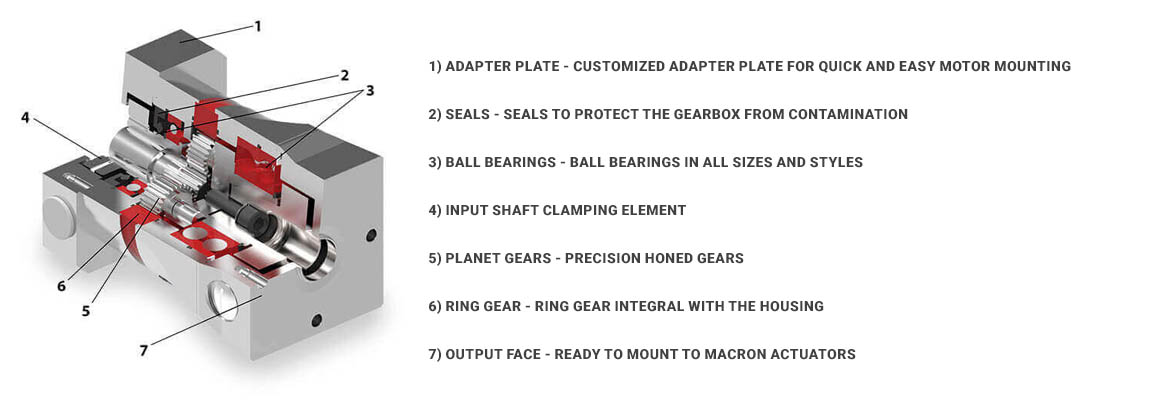

IPS inline and right-angle planetary gearboxes are designed to eliminate the need for motor mounts used in a typical linear actuator drive system setup. These gearboxes are a direct bolt-on installation for any IPS linear actuator. The gearbox’s design eliminates the need for couplings and large mounting brackets, essentially making the actuator and drive assembly a seamless integral unit.
Inline

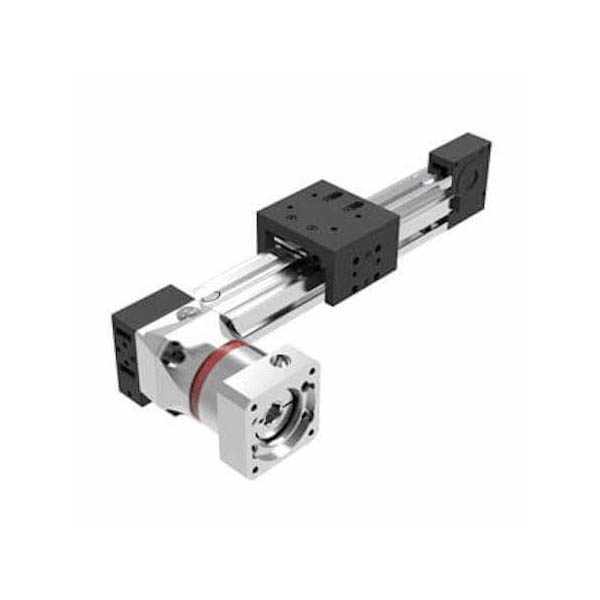

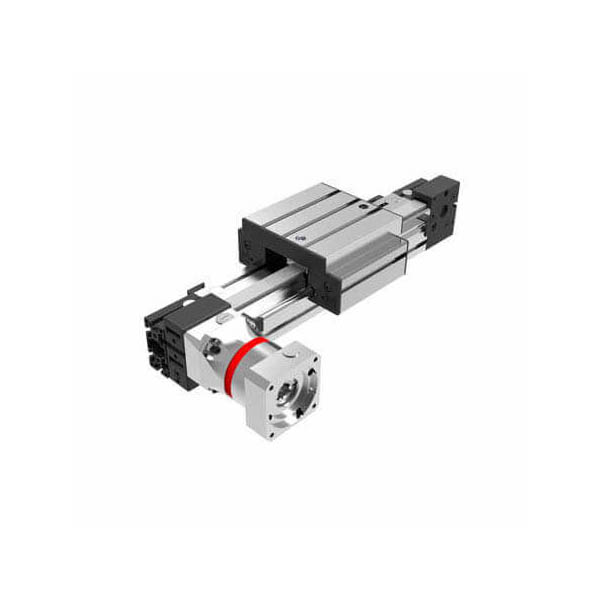

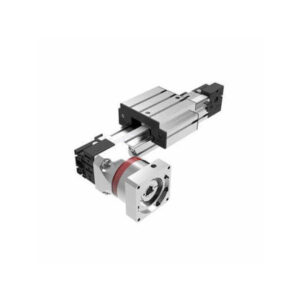

iPG-062 Inline Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 14 – 26 Nm (124 – 230 in-lbs) | 14mm |

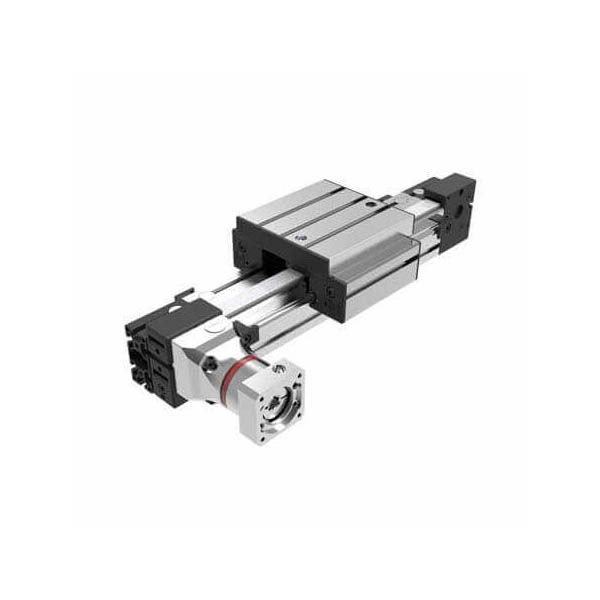

iPG-064 Inline Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 14 – 26 Nm (124 – 230 in-lbs) | 14mm |
iPG-084 Inline Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 40 – 50 Nm (354 – 443 in-lbs) | 19mm |
iPG-114 Inline Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 100 – 120 Nm (885 – 1062 in-lbs) | 24mm |

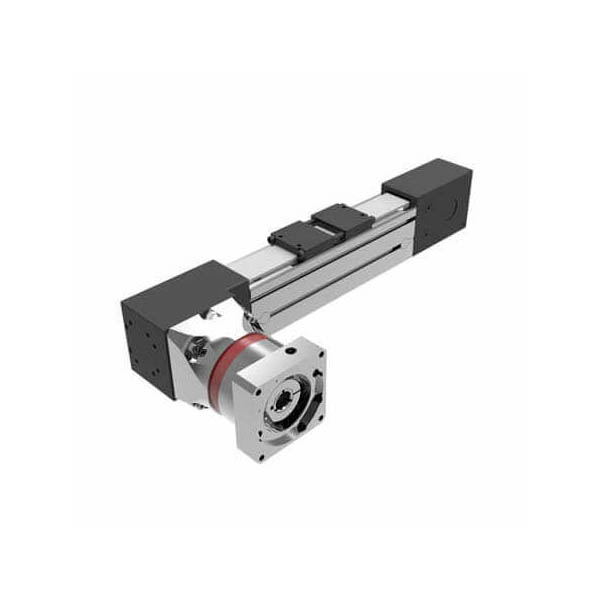

iPG-118 Inline Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 100 – 120 Nm (885 – 1062 in-lbs) | 24mm |
- iPG-062
-
iPG-062 Inline Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 14 – 26 Nm (124 – 230 in-lbs) 14mm - iPG-064
-
iPG-064 Inline Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 14 – 26 Nm (124 – 230 in-lbs) 14mm - iPG-084
-
iPG-084 Inline Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 40 – 50 Nm (354 – 443 in-lbs) 19mm - iPG-114
-
iPG-114 Inline Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 100 – 120 Nm (885 – 1062 in-lbs) 24mm - iPG-118
-
iPG-118 Inline Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 100 – 120 Nm (885 – 1062 in-lbs) 24mm

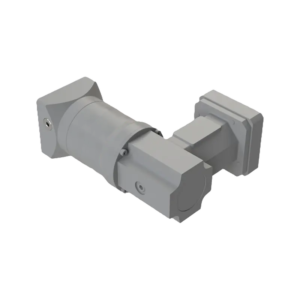

Right-Angle

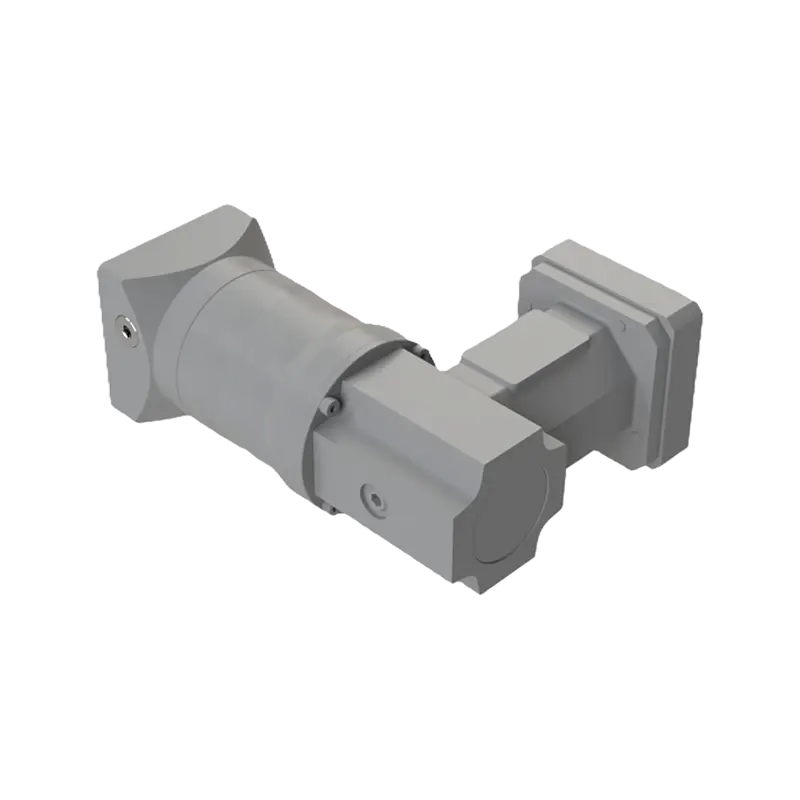

iRS-062 Right-Angle Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 21 – 26 Nm (186 – 230 in-lbs) | 24mm |

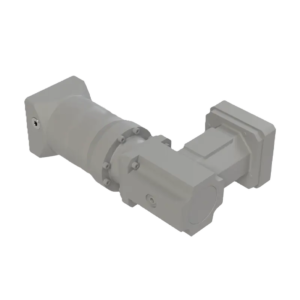

iRS-064 Right-Angle Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 21 – 26 Nm (186 – 230 in-lbs.) | 24mm |

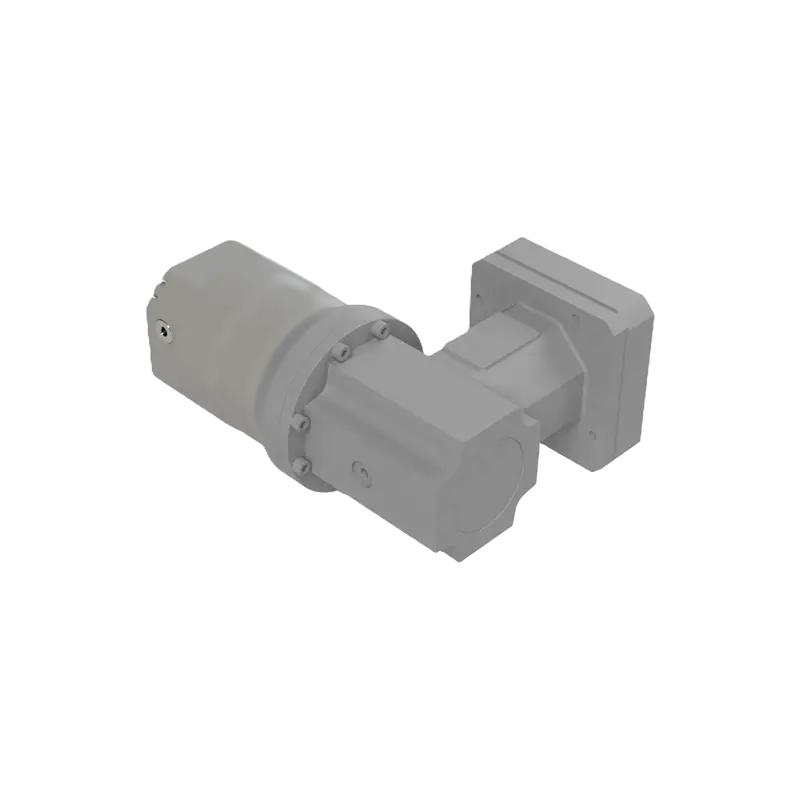

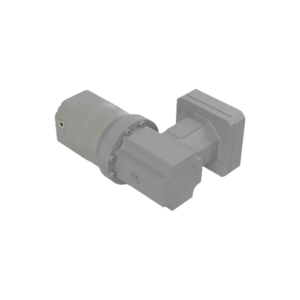

iRS-084 Right-Angle Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 45 – 60 Nm (398 – 531 in-lbs.) | 32mm |

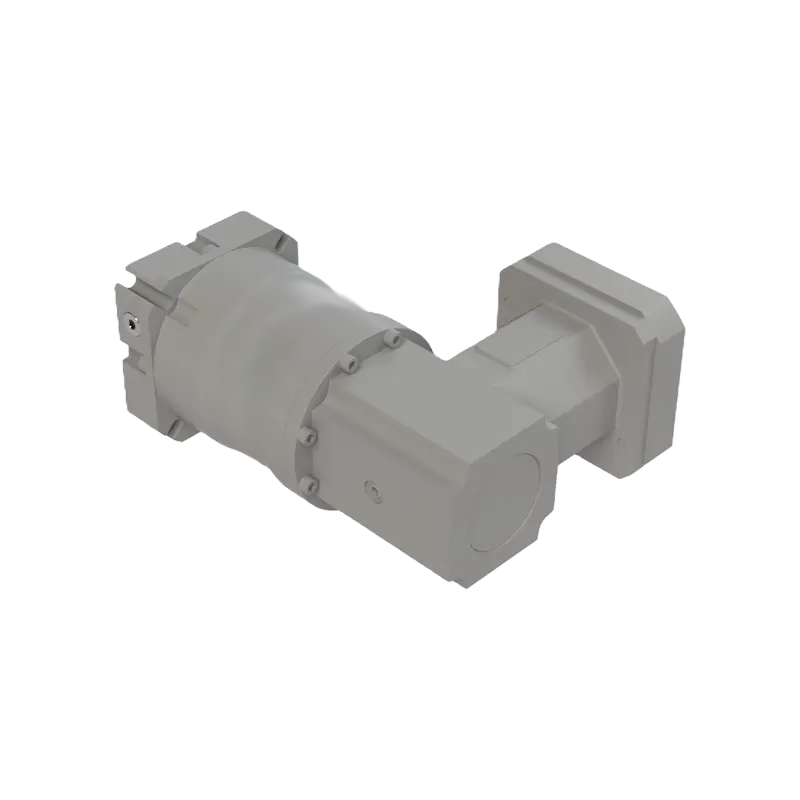

iRS-114 Right-Angle Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 90 – 130 Nm (797 – 1151 in-lbs.) | 24mm |

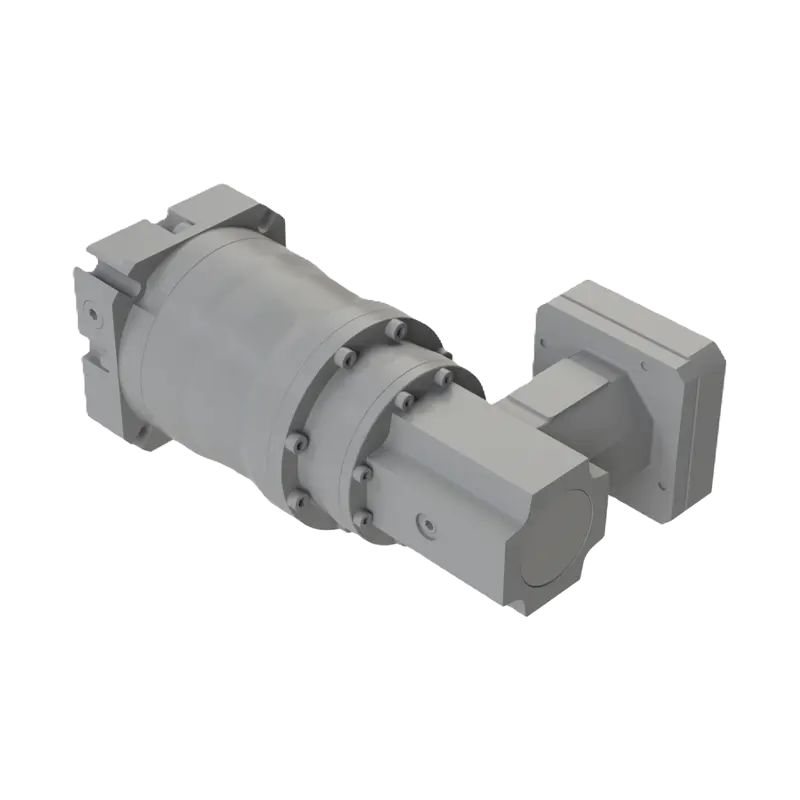

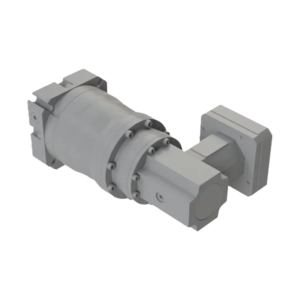

iRS-118 Right-Angle Planetary Gearbox
| Output Torque | Motor Input Shaft Dia. (max) |
|---|---|
| 90 -130 Nm (797 – 1151 in-lbs.) | 38mm |
- iRS-062
-
iRS-062 Right-Angle Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 21 – 26 Nm (186 – 230 in-lbs) 24mm - iRS-064
-
iRS-064 Right-Angle Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 21 – 26 Nm (186 – 230 in-lbs.) 24mm - iRS-084
-
iRS-084 Right-Angle Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 45 – 60 Nm (398 – 531 in-lbs.) 32mm - iRS-114
-
iRS-114 Right-Angle Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 90 – 130 Nm (797 – 1151 in-lbs.) 24mm - iRS-118
-
iRS-118 Right-Angle Planetary Gearbox
Output Torque Motor Input Shaft Dia. (max) 90 -130 Nm (797 – 1151 in-lbs.) 38mm

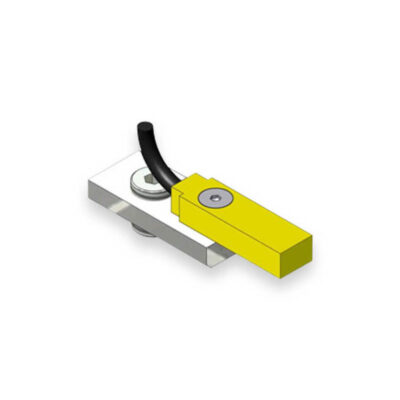

T-Slot Sensor Kits

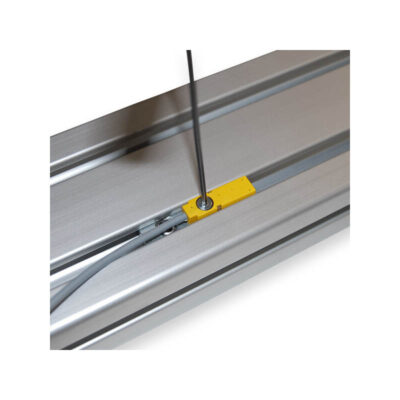

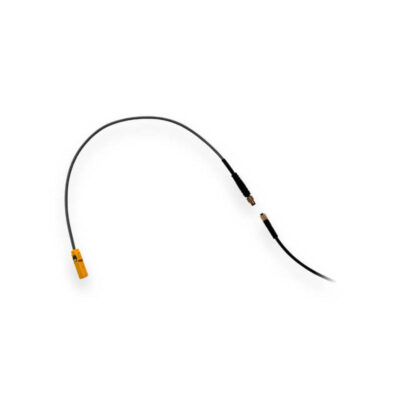

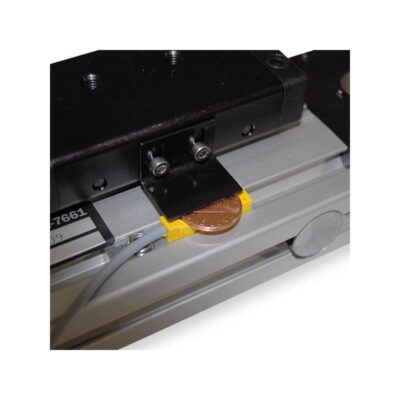

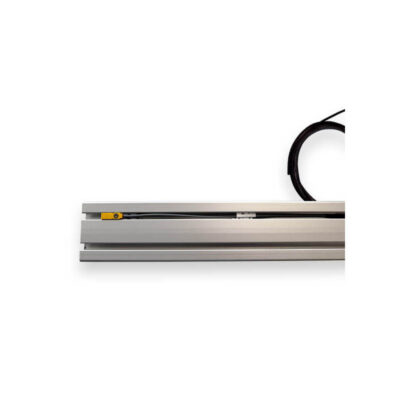

IPS T-Slot Sensor Kits install easily in all IPS actuators, belt drives, screw actuators, and aluminum extrusion. Using T-nut capture and adjustability, our inductive proximity sensors fit perfectly into the actuator beam T-slot and provide a low profile mounting. The cables can be routed through the T-slot producing a clean system.
IPS T-slot sensors are 24VDC and available in PNP and NPN output transistor logic with NO (normally open) or NC (normally closed) configuration. Sensors and mating cord sets meet NEMA 1, 3, 4, 6P and IEC IP67 ratings. IPS T-slot Sensors can provide users with limit, position or output signaling back to a control system.

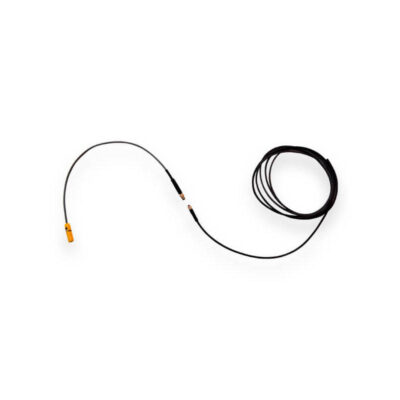

Each T-Slot Sensor Kit Includes:
- Sensor
- Cord Set
- T-Nut w/Set Screws (Long and Short)
- Mounting Screw (M3x10 FHCS)
- Tech Data Sheet and Installation Guide
- Cord-Set Extension (if specified)
