IPS Conveyor Line

conveyors

IPS currently offers a variety of aluminum frame flat belt conveyor systems with different platforms.  This enables us to provide the best fit for your application, regardless of your material handling needs. See our current lineup of conveyor solutions below. Below are some of our standard conveyor offerings and our engineers are always ready to discuss a fully customized solution with you.

Constructed out of high quality IPS aluminum extrusion, our flat belt conveyors are fully compatible with the other solutions that we offer. This modular approach allows you to quickly and easily build, adapt and modify your production line environment.

iFB – Flat Belt Conveyors

Modular and custom design options. Common uses include assembly, material handling, sorting, and transfers. Side rails and supports can be integrated into systems. Elevation applications available. If you need a custom solution, please reach out to one of our design experts.

Subcategories – Standard, Mini, Heavy Duty

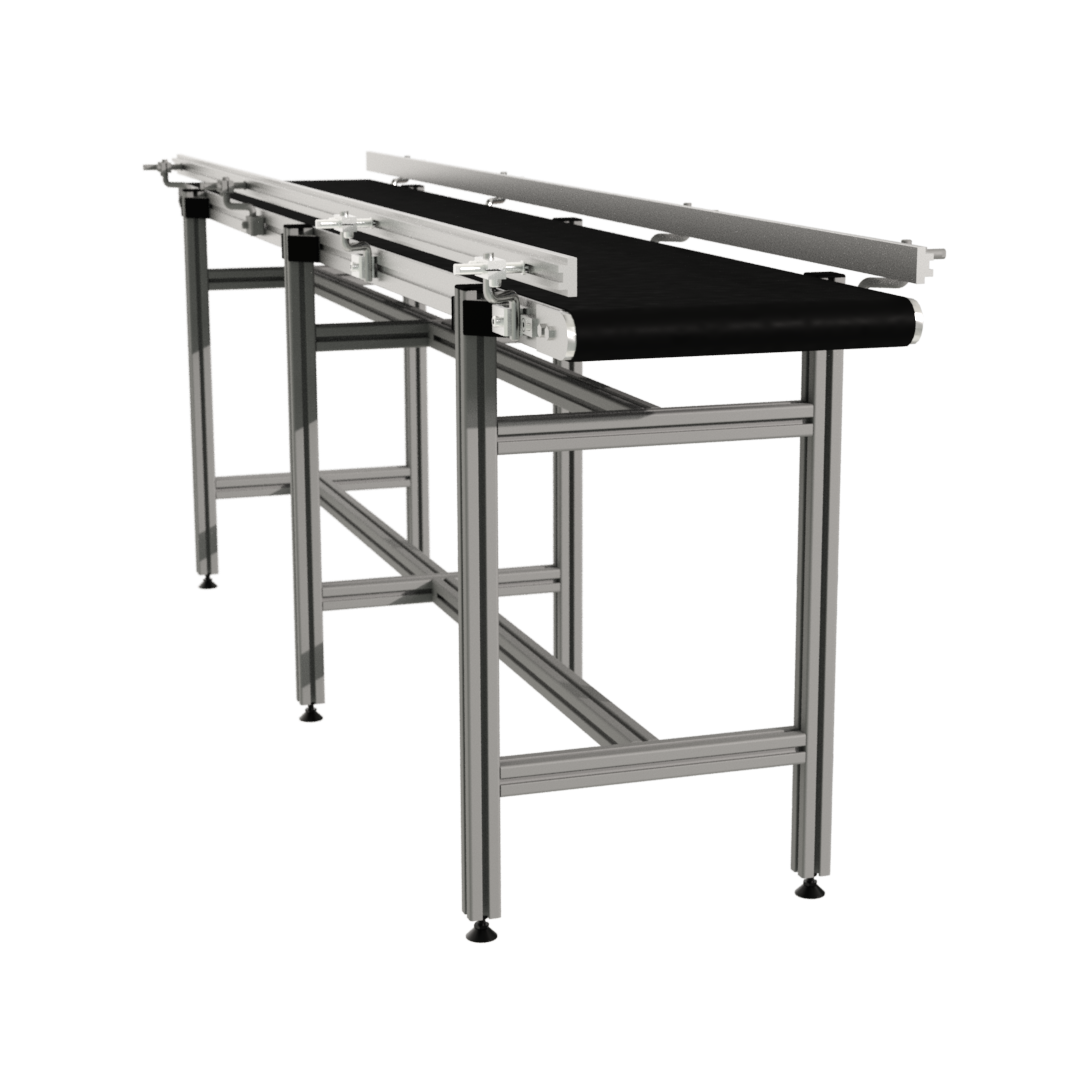

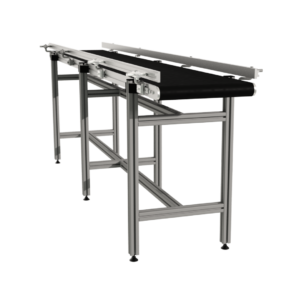

IPS iFB Standard Flat Bed Conveyor
WidthLengthLoadSpeedBelting
50mm increments to 300mm/100mm increments from 300mm to 800mm310mm to 10000mmMax Load: 300lbs per conveyor unitMax Speed: 500 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade, Cleated Options
Request Quote

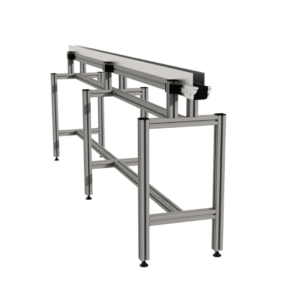

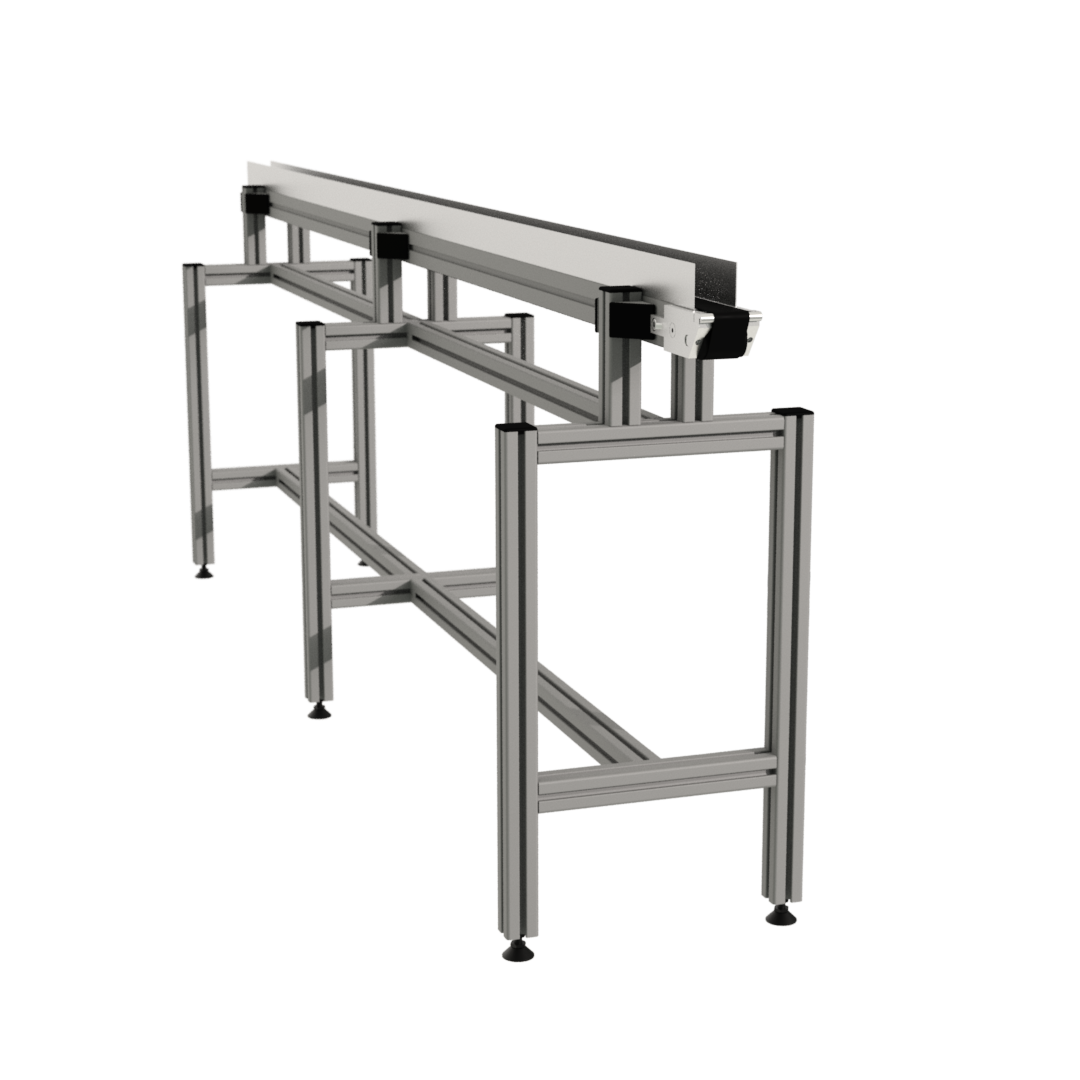

IPS iFB Mini Flat Bed Conveyor
WidthLengthLoadSpeedBelting
75mm, 100mm, 150mm310mm to 5,0000mmMax Load: 100lbs per conveyor unitMax Speed: 200 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade
Request Quote

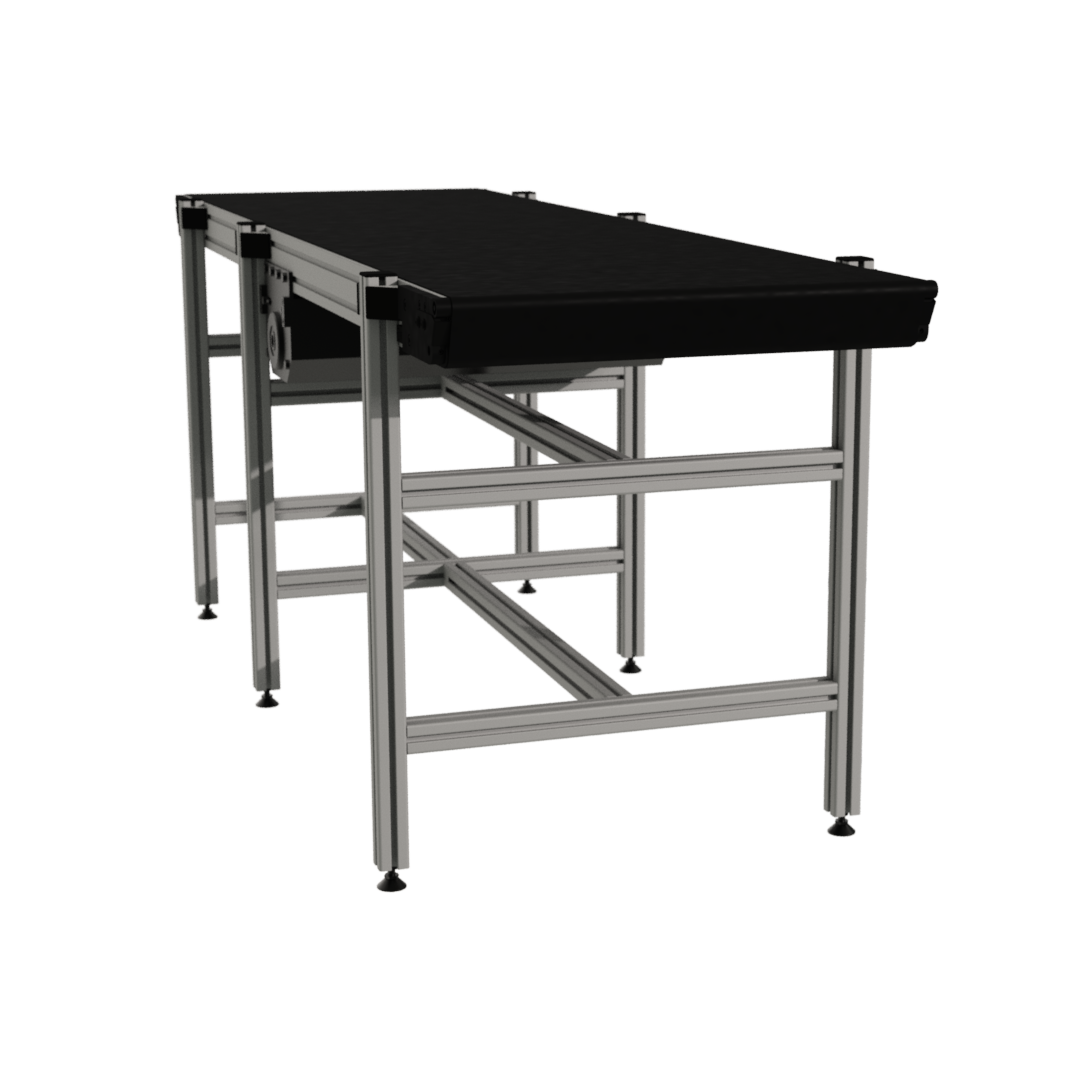

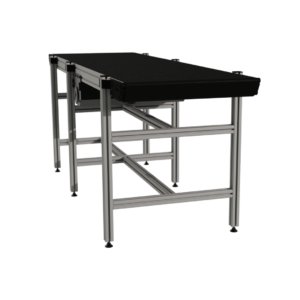

IPS iFB Heavy Duty Flat Bed Conveyor
WidthLengthLoadSpeedBelting
200mm to 1,200mm in 100mm increments600mm to 10,000mmMax Load: 500lbs per conveyor unitMax Speed: 500 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade, Cleated Options
Request Quote
Standard
IPS iFB Standard Flat Bed Conveyor
WidthLengthLoadSpeedBelting
50mm increments to 300mm/100mm increments from 300mm to 800mm310mm to 10000mmMax Load: 300lbs per conveyor unitMax Speed: 500 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade, Cleated Options
Request Quote
Mini
IPS iFB Mini Flat Bed Conveyor
WidthLengthLoadSpeedBelting
75mm, 100mm, 150mm310mm to 5,0000mmMax Load: 100lbs per conveyor unitMax Speed: 200 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade
Request Quote
Heavy Duty
IPS iFB Heavy Duty Flat Bed Conveyor
WidthLengthLoadSpeedBelting
200mm to 1,200mm in 100mm increments600mm to 10,000mmMax Load: 500lbs per conveyor unitMax Speed: 500 ft/minSmooth, Tacky, Textured, Anti-Static, Food Grade, Cleated Options
Request Quote

iPB – Plastic Belt Conveyors

iPB Plastic Belt Conveyors offer increased durability than standard belt options. Easy replacement of damaged sections reduces downtime and replacement costs. Ideal for high load applications that may also require high speeds, drainage and airflow features. Side rails and supports can also be integrated into iPB conveyor systems. Elevation applications available. If you need a custom solution, please reach out to one of our design experts.

Subcategories – Standard, Cleated

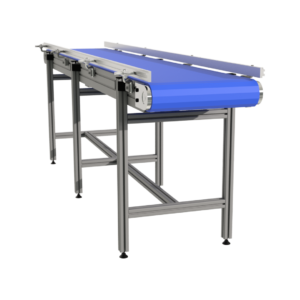

IPS iPB Belt Conveyor Table
WidthLengthLoadSpeedBelting
800mm to 3,000mm400mm to 10,0000mmMax Load: 1,000lbs per conveyor unitMax Speed: 200 ft/minPlastic Modular Belt, Flat Top, Flush Grid, Textured, Options for Cleats and Sidewalls
Request Quote

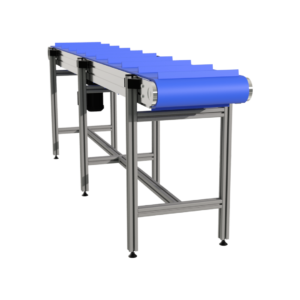

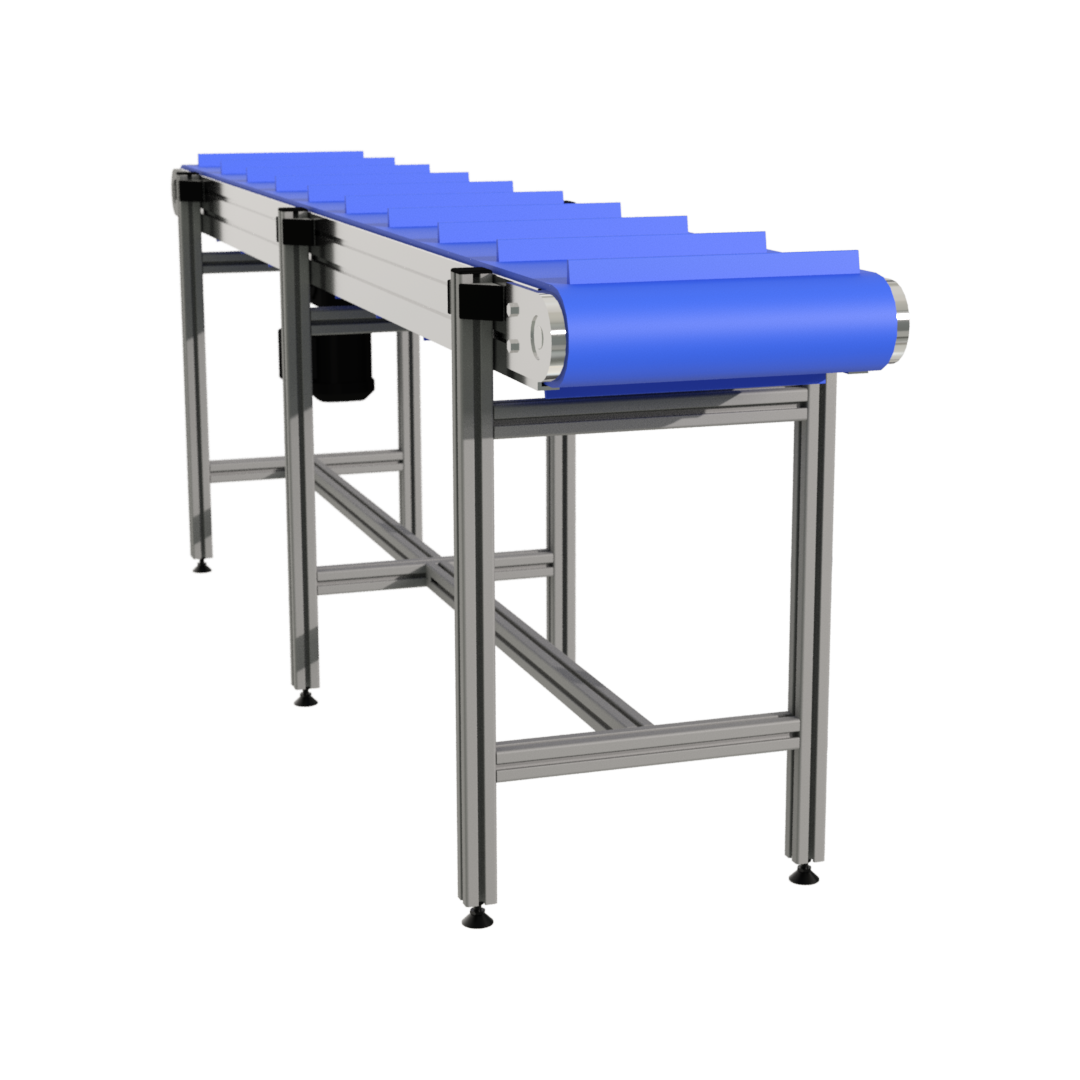

IPS iPB Cleated Belt Conveyor Table
WidthLengthLoadSpeedBelting
800mm to 3,000mm400mm to 10,0000mmMax Load: 1,000lbs per conveyor unitMax Speed: 200 ft/minPlastic Modular Belt, Flat Top, Flush Grid, Textured, Options for Cleats and Sidewalls
Request Quote
Standard
IPS iPB Belt Conveyor Table
WidthLengthLoadSpeedBelting
800mm to 3,000mm400mm to 10,0000mmMax Load: 1,000lbs per conveyor unitMax Speed: 200 ft/minPlastic Modular Belt, Flat Top, Flush Grid, Textured, Options for Cleats and Sidewalls
Request Quote
Cleated
IPS iPB Cleated Belt Conveyor Table
WidthLengthLoadSpeedBelting
800mm to 3,000mm400mm to 10,0000mmMax Load: 1,000lbs per conveyor unitMax Speed: 200 ft/minPlastic Modular Belt, Flat Top, Flush Grid, Textured, Options for Cleats and Sidewalls
Request Quote

iTB – Timing Belt Conveyors

iTB Timing Belt Conveyors are best for repeatability, precision movement, pallet handling and robotic applications. Side rails and supports can be integrated into systems. If you need a custom solution, please reach out to one of our design experts.

Subcategories – Standard, Heavy Duty, Dual

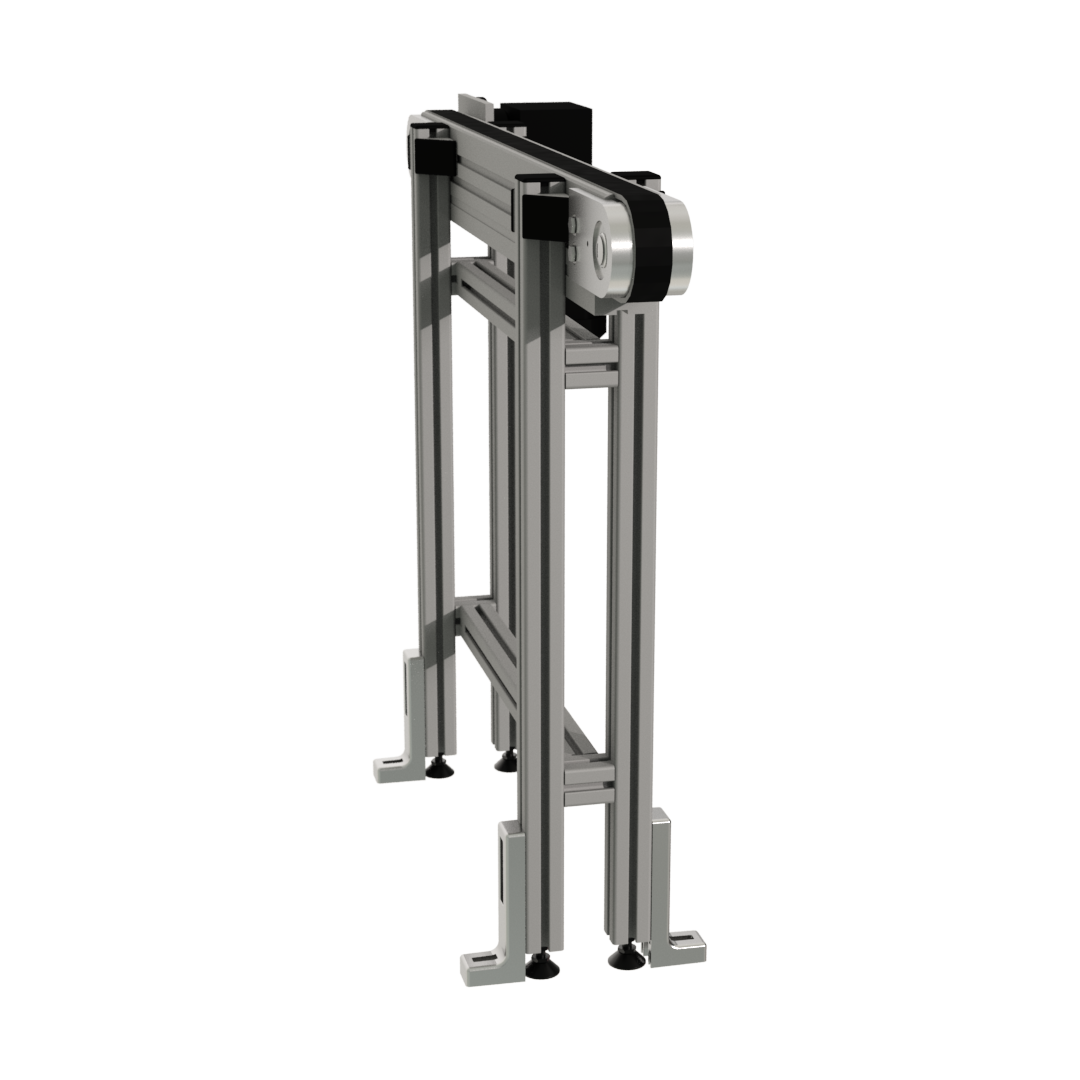

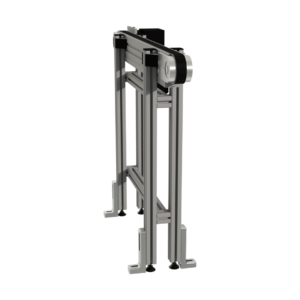

IPS iTB-STD Timing Belt Conveyor
WidthLengthLoadSpeedBeltingAttachment Option
Each rail is 50mm, with the outside width nearly unlimited if multiple lanes are utilized500mm to 10,0000mmMax Load: 800lbs per drive, 250lbs. per pallet (if applicable)Max Speed: 200 ft/minT10 Timing Belt, available in urethane or other coatings like nylon and grip topWorkpiece Pallet
Request Quote

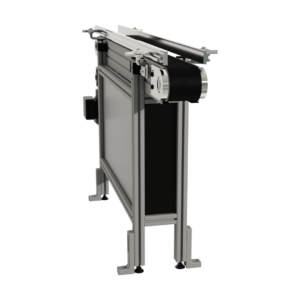

IPS iTB Timing Belt Conveyor
WidthLengthLoadSpeedBelting
80mm, 120mm – multiple lanes can be utilized500mm to 10,0000mmMax Load: 1,500lbs per driveMax Speed: 200 ft/minAT10 Timing Belt, available in urethane or other coatings like nylon and grip top/Ultrasonically welded cleats, M4 inserts in the belt
Request Quote
IPS iTB Timing Belt Conveyor
WidthLengthLoadSpeedBelting
80mm, 120mm – multiple lanes can be utilized500mm to 10,0000mmMax Load: 1,500lbs per driveMax Speed: 200 ft/minAT10 Timing Belt, available in urethane or other coatings like nylon and grip top/Ultrasonically welded cleats, M4 inserts in the belt
Request Quote
Standard
IPS iTB-STD Timing Belt Conveyor
WidthLengthLoadSpeedBeltingAttachment Option
Each rail is 50mm, with the outside width nearly unlimited if multiple lanes are utilized500mm to 10,0000mmMax Load: 800lbs per drive, 250lbs. per pallet (if applicable)Max Speed: 200 ft/minT10 Timing Belt, available in urethane or other coatings like nylon and grip topWorkpiece Pallet
Request Quote

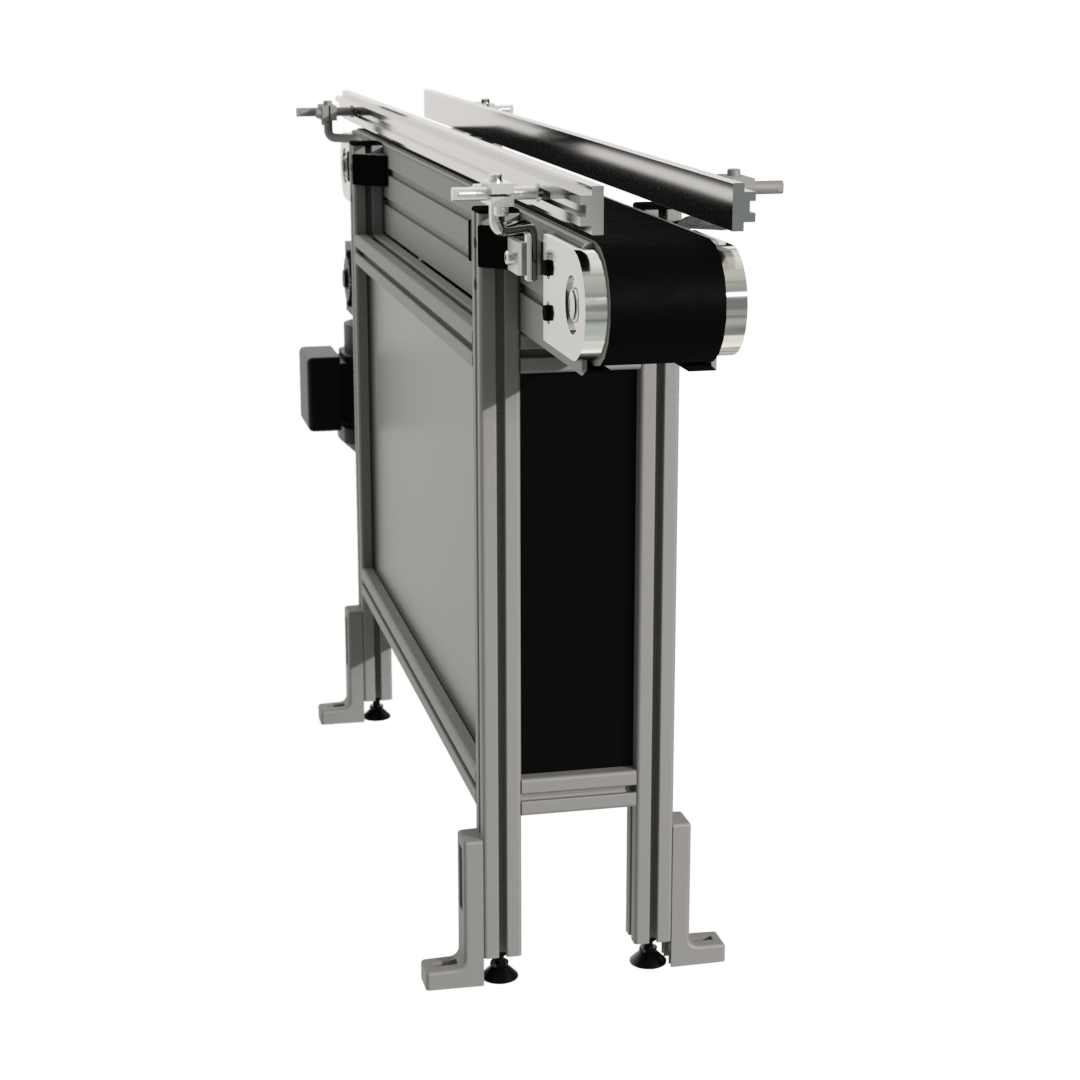

Heavy Duty
IPS iTB Timing Belt Conveyor
WidthLengthLoadSpeedBelting
80mm, 120mm – multiple lanes can be utilized500mm to 10,0000mmMax Load: 1,500lbs per driveMax Speed: 200 ft/minAT10 Timing Belt, available in urethane or other coatings like nylon and grip top/Ultrasonically welded cleats, M4 inserts in the belt
Request Quote

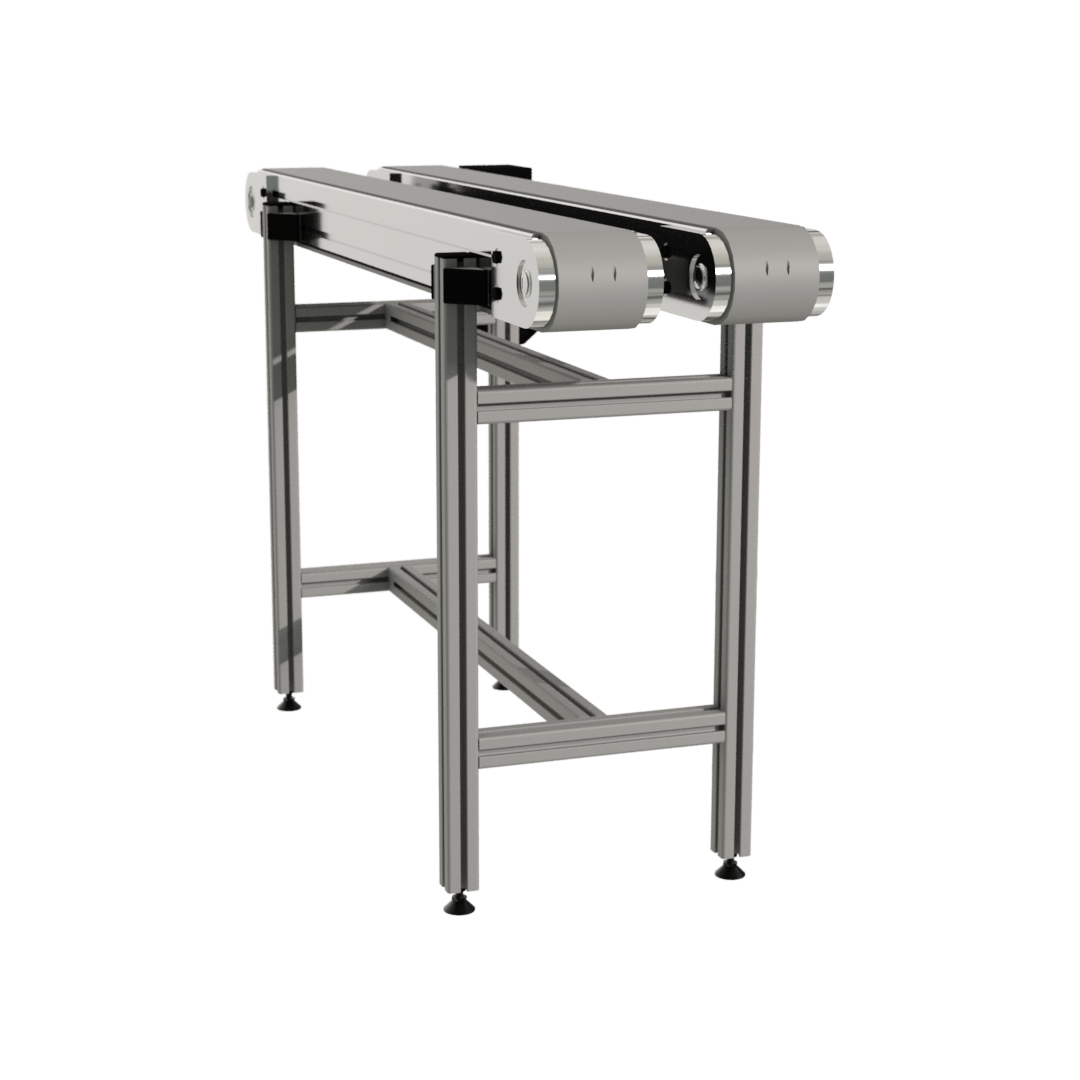

Dual
IPS iTB Timing Belt Conveyor
WidthLengthLoadSpeedBelting
80mm, 120mm – multiple lanes can be utilized500mm to 10,0000mmMax Load: 1,500lbs per driveMax Speed: 200 ft/minAT10 Timing Belt, available in urethane or other coatings like nylon and grip top/Ultrasonically welded cleats, M4 inserts in the belt
Request Quote

iRC – Roller Conveyors

iRC Roller Conveyors are available in Gravity, Driven and Powered options. Applications include: sorting, transfers, assembly, packaging, part queuing and general manufacturing. If you need a custom solution, please reach out to one of our design experts.

Subcategories – Gravity, Driven, Powered

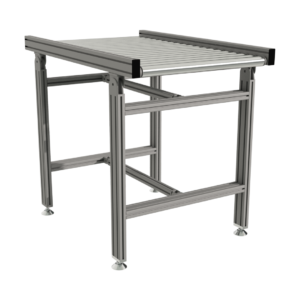

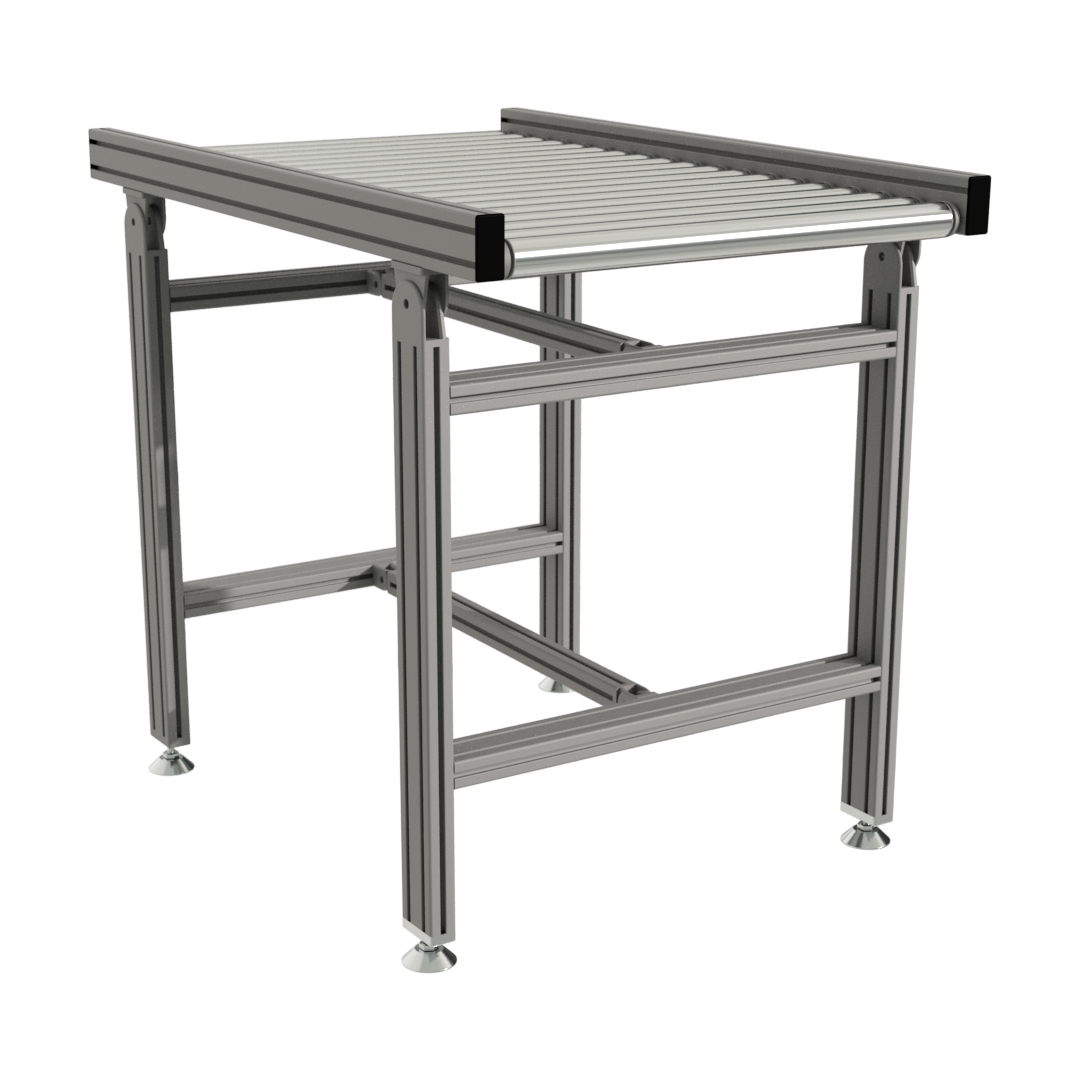

IPS iRC-Gravity Roller Conveyor
WidthLengthLoadRollersRoller PitchGuide Rails
Starts at 160mm (800mm max)Up to 6,000mm (Can be set up in series for longer systems)Max Load: 1,000N (224.8 lbs.) per Roller – D50 Tube50mm dia. Aluminum Tube Extrusion (1-3/8″ or 2″ dia. Steel Available)Customizable depending on roller material/product size Available as add-on
  • Gravity driven roller conveyor system
  • Ideal for lines in which an operator is responsible for moving product down the line
Request Quote

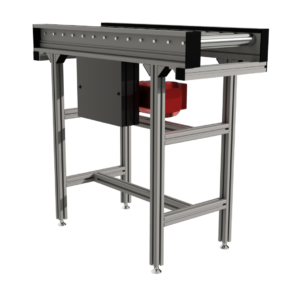

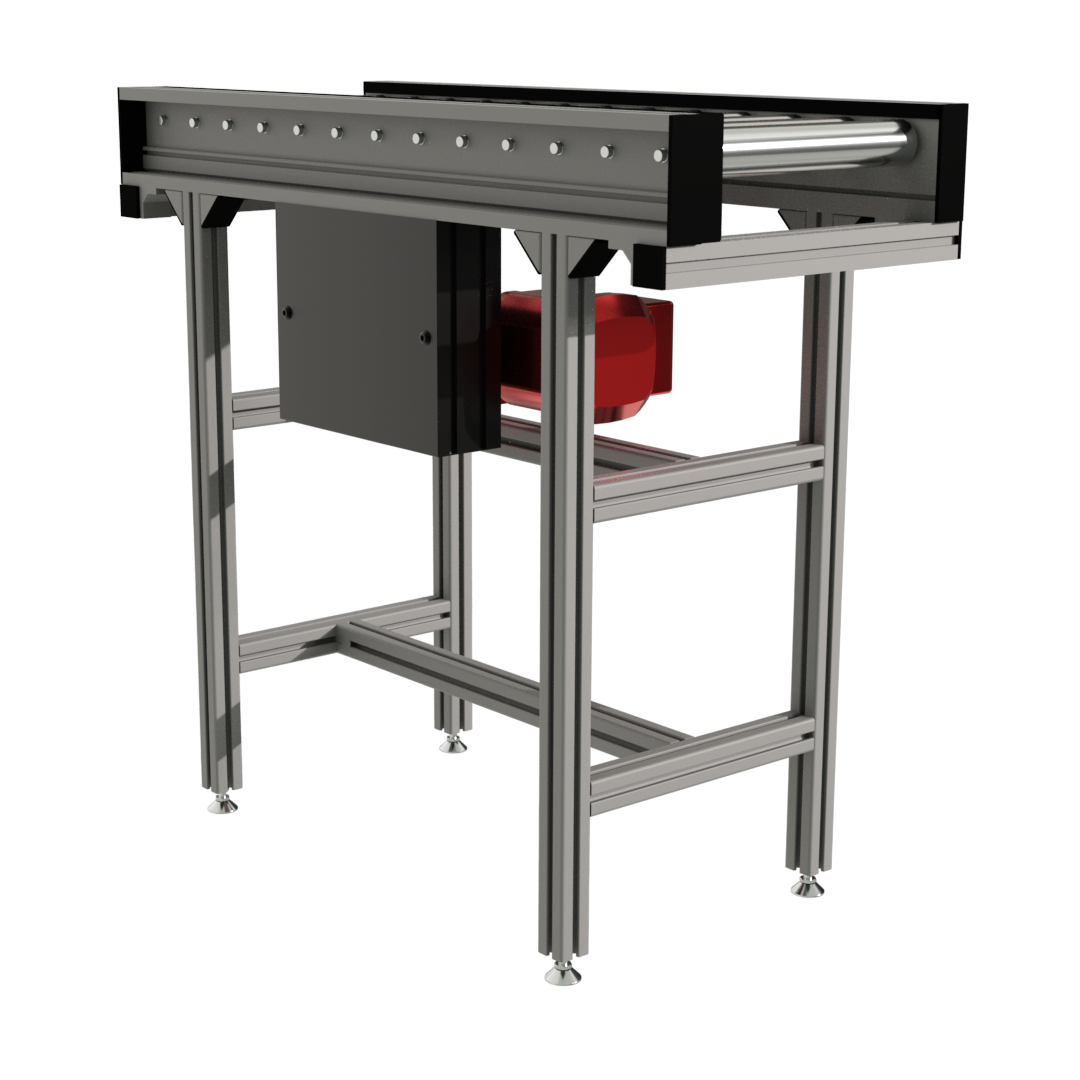

IPS iRC-Driven Roller Conveyor
WidthLengthLoadSpeedRollersRoller Pitch
Starts at 420mm (1,524mm max.)Up to 10,000mmMax Load: Dependent on Roller Type and PlatformMax Speed: 100 ft/min.1.9″ Dia. (Various Metals and Plastics)100mm
  • Chain driven roller conveyor system
  • Ideal for wide, bulky products
  • Dependable and reliable
  • Capable of indexing and staggering product
  • Standard US, Mexico, and Canadian voltages available
  • Powered by an external motor
Request Quote

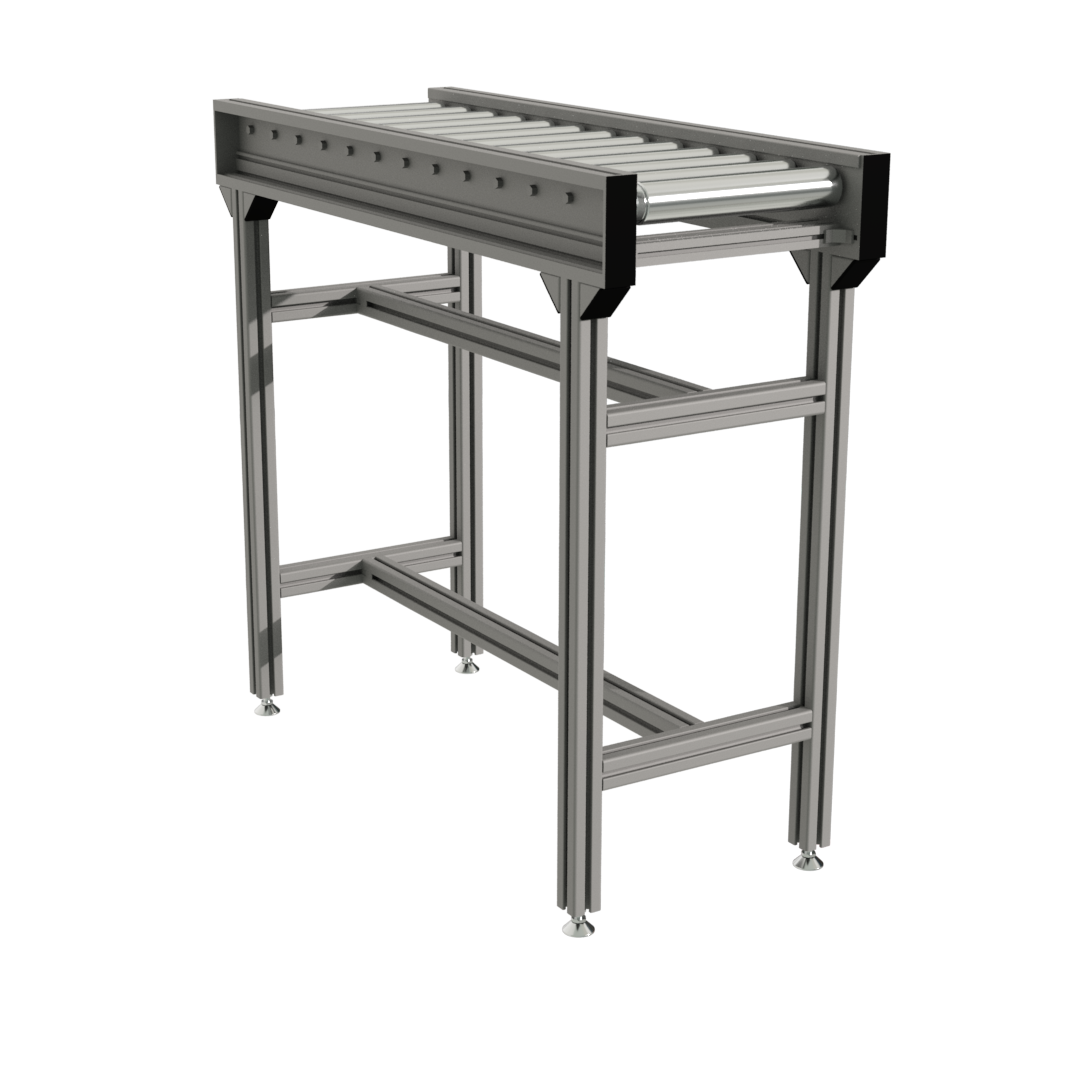

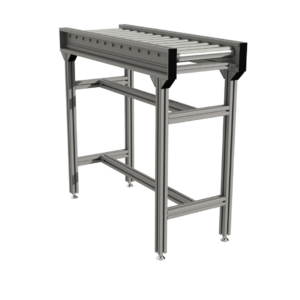

IPS iRC-Powered Roller Conveyor
WidthLengthLoadSpeedRollersRoller Pitch
250mm to 1,524mmUp to 10,000mmMax Load: Dependent on Roller Type and PlatformMax Speed: 100 ft/min.1.9″ Dia. (Various Metals and Plastics)100mm
  • Allow for zoned specific conveyors
  • Excellent for tight spaces and short lengths
  • Rollers are 24VDC and include a drive card
  • Multiple rollers can be driven using a single drive card
  • A single motorized roller can drive up to eight idler rollers
Request Quote
Gravity
IPS iRC-Gravity Roller Conveyor
WidthLengthLoadRollersRoller PitchGuide Rails
Starts at 160mm (800mm max)Up to 6,000mm (Can be set up in series for longer systems)Max Load: 1,000N (224.8 lbs.) per Roller – D50 Tube50mm dia. Aluminum Tube Extrusion (1-3/8″ or 2″ dia. Steel Available)Customizable depending on roller material/product size Available as add-on
  • Gravity driven roller conveyor system
  • Ideal for lines in which an operator is responsible for moving product down the line
Request Quote
Driven
IPS iRC-Driven Roller Conveyor
WidthLengthLoadSpeedRollersRoller Pitch
Starts at 420mm (1,524mm max.)Up to 10,000mmMax Load: Dependent on Roller Type and PlatformMax Speed: 100 ft/min.1.9″ Dia. (Various Metals and Plastics)100mm
  • Chain driven roller conveyor system
  • Ideal for wide, bulky products
  • Dependable and reliable
  • Capable of indexing and staggering product
  • Standard US, Mexico, and Canadian voltages available
  • Powered by an external motor
Request Quote
Powered
IPS iRC-Powered Roller Conveyor
WidthLengthLoadSpeedRollersRoller Pitch
250mm to 1,524mmUp to 10,000mmMax Load: Dependent on Roller Type and PlatformMax Speed: 100 ft/min.1.9″ Dia. (Various Metals and Plastics)100mm
  • Allow for zoned specific conveyors
  • Excellent for tight spaces and short lengths
  • Rollers are 24VDC and include a drive card
  • Multiple rollers can be driven using a single drive card
  • A single motorized roller can drive up to eight idler rollers
Request Quote
