Linear Motion Systems

LINEAR MOTION

Industrial Profile Systems’ dynamic linear motion selection includes a variety of high-quality extruded aluminum profiles, components and comprehensive linear motion systems. From light duty to heavy duty, with travel of a few inches to over 200 feet (60m), and loads of a few ounces to thousands of pounds. The IPS product line consists of a wide range of dynamic components for Industrial Profile Systems’ engineers to select from when designing a mechanical solution for your next linear motion project.

By taking advantage of the high straightness tolerance of the L8 extruded aluminum profiles, Shaft Clamp Profile is used enabling the installation of guide shafts into the standard T-slot grooves. This modularity is not only convenient for those looking to add motion capabilities to an existing frame, though it is particularly useful when designing and constructing large support structures for linear gantry applications.

We offer easy belt-driven linear actuator solutions that are ideal for tight spaces without sacrificing precise movement. With traditional belt-driven linear actuator systems and ball-screw linear actuators we can build a tailored linear motion system by utilizing the extruded aluminum profiles and components. We build ball screw actuators up to 110 inches (2794mm) in length, available with 5 and 20-pitch screw. Learn more about our capabilities in belt-driven linear actuators.



Belt-Driven Linear Systems

Projects are now hassle free. From the very beginning to end, we are with you every step of the way to ensure project requirements are met and on time, using the experience we have learned along the way.

Belt-Drive Guidelines

*Dependent upon project applications

  • Repeatability: +/- .15mm [.006″]
  • Speeds: Variable Speeds and up to 5 m/s, 16 ft/sec.
  • Efficiency Overall: to 98%
  • Carriage Area: Minimum 320 cm² [49.6 in²]
  • Carriage Loads: to 7600 N, 1700 lbs. max
  • Travel Limits, Max Stroke: 50 M [164’.0”]

Ball-Screw Linear Systems

Ball-screw linear units are generally used in linear applications where low speeds and smaller travel distances are required. They are used in situations where high efficiency, exact precision, and substantial load carrying capacities are needed. Ball-screw units can be used in both horizontal and vertical applications. This unit can be easily combined with linear components and/or customer guides. Drive side of screw can be selected to match as necessary.

Ball-Screw Guidelines

*Dependent upon project applications

  • Repeatability: +/- .05mm [.002″]
  • Speeds: Medium to Lower speeds under and up to 1.0 m/s, 3 ft/sec.
  • Efficiency Overall: to 85%
  • Carriage Area: Minimum 320 cm² [49.6 in²]
  • Carriage Loads: 900 to 1800N, 200-400 lbs max
  • Travel Limits, Max Stroke: Under 2700mm [106.3”] 9ft max

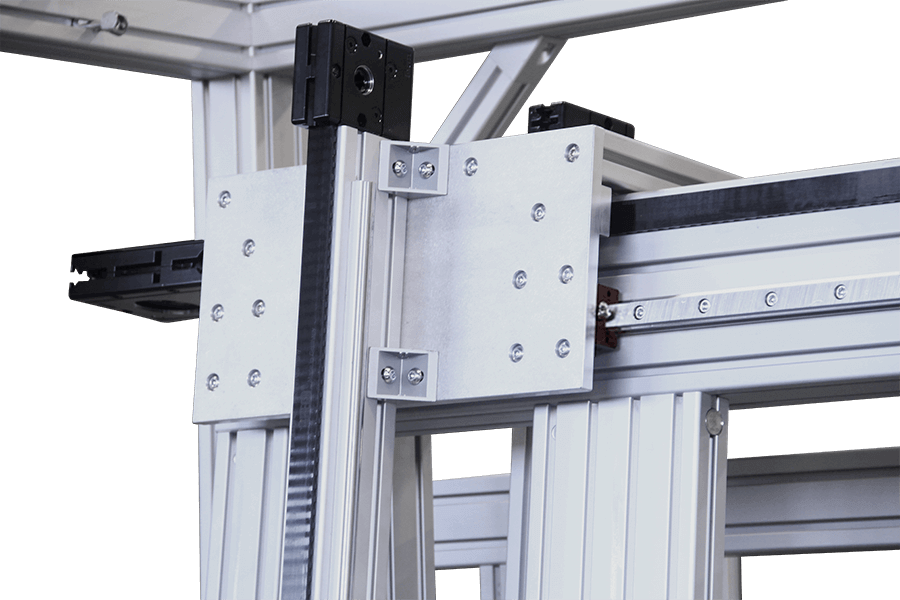

Multi-Axis Linear Systems

Multi-axis linear systems are generally used in Pick-n-Place situations where materials and components are required to be lifted and moved to another location. These units can range in design for light weight parts moving only millimeters, to more robust components weighing thousands of pounds and moving several meters. Each unit is designed to work specifically to the customers specifications for load, speed, and accuracy. Multi-axis systems can be used with belt-driven and ball-screw linear configurations. Single-axis linear motion systems are also available.
Industrial Profile Systems merges experienced design and high-quality product to build dynamic material handling applications.
